Product Details:
Payment & Shipping Terms:
|
| P/N: | BC70017M | Gender: | Male |
|---|---|---|---|
| WARRANTY: | 1 Year | Type: | AMP Connector |
| Way: | 7 Hole | HS Code: | 8536909000 |
| Feature: | Waterproof | Color: | Black |
| Martial: | PBT/PA66 | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | amp automotive connectors,amp junior power timer connector |
||
YBADDVANCE 7 Way Male JPT Junior Power Timer Housing Connector
Description
7 Way Male JPT Junior Power Timer Housing Connector
1 Row ,7 Way
Mating Connector: 282194-1
Series: Junior Power Timer
Specification
|
Item name |
YBADDVANCE 7 Way Male JPT Junior Power Timer Housing Connector |
| Part Number | BC70017M |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
7 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 7 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

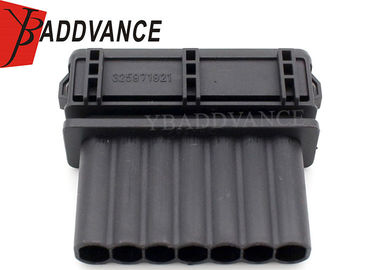

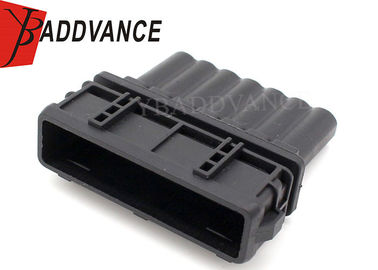

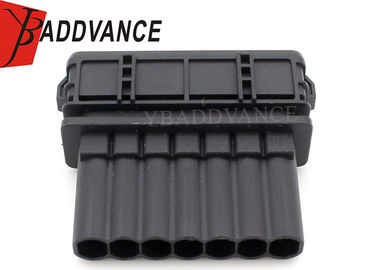

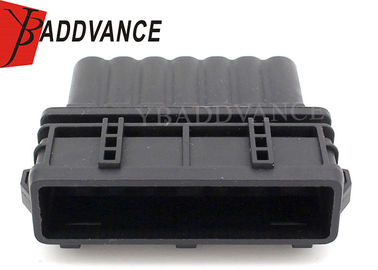

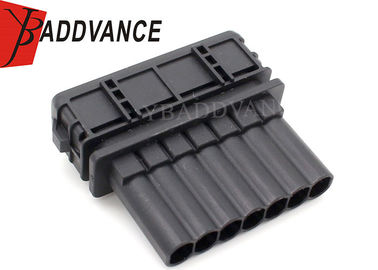

Product Picture Details
