Product Details:
Payment & Shipping Terms:
|
| Gender: | Male | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Grey | P/N: | 6098-0242 |
| Way: | 3 Hole | Feature: | Non-sealed |
| HS Code: | 8536909000 | Type: | Sumitomo Connector |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo 4 pin connector |
||
3 Pin Male Non-sealed Sumitomo HD 090 Housing Connector 6098-0242
Description
3 Pin Male Non-sealed Sumitomo HD 090 Housing Connector
1 Row, 3 Way
Housing Inline
Height : 14.3 mm
Width : 17.5 mm
Length : 36.5mm
Tab size(mm): 2.3mm(090)
Series : HD sealed series
Mating part : 6098-0241
Contact resistance:
Initial: 3mΩ Max.
after durability tests: 10mΩ Max.
If you want more, the price will be cheaper, please feel free to contact us to get cheaper price!
Specification
|
Item name |
3 Pin Male Non-sealed Sumitomo HD 090 Housing Connector 6098-0242 |
| P/N | 6098-0242 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin non sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

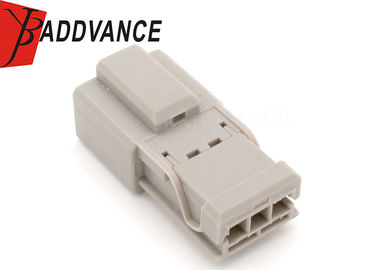

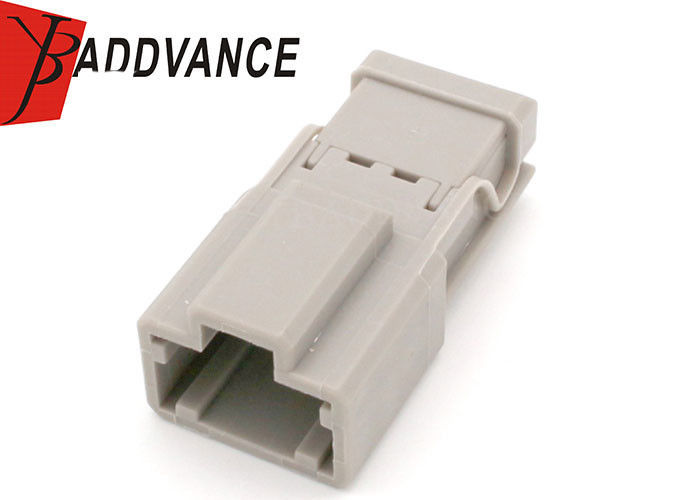

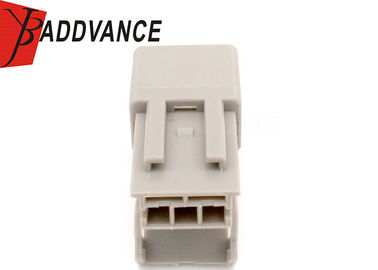

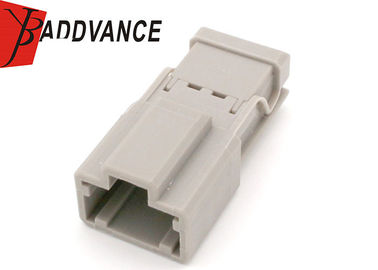

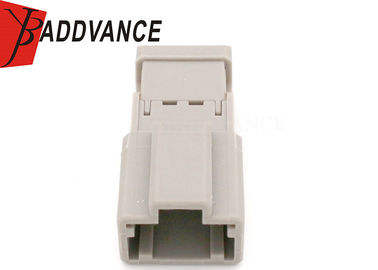

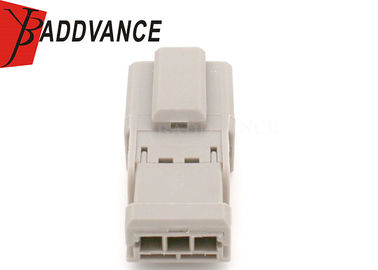

Product Picture Details
