Product Details:
Payment & Shipping Terms:
|
| Martial: | PBT/PA66 | Gender: | Female |
|---|---|---|---|
| Color: | Black | Way: | 3 Hole |
| Type: | Deutsch DT Series Connectors | HS Code: | 8536909000 |
| Feature: | Waterproof | P/N: | DT06-3S-E005 |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
3 Pin Female Deutsch DT Series Connector with Terminal DT06-3S-E005
Description
3 Pin Female Deutsch DT Series Connector with Terminal
Height : 29.64 mm
Width : 23.876 mm
Length : 18.7 mm
Current Rating: 13A
Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 8.7 mm
Specification
|
Item name |
3 Pin Female Deutsch DT Series Connector with Terminal DT06-3S-E005 |
| P/N | DT06-3S-E005 |
|
Wire Size |
14-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

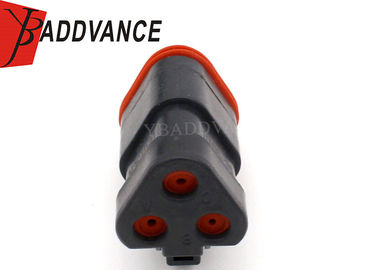

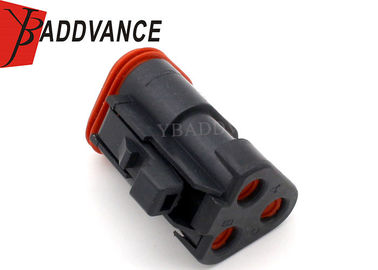

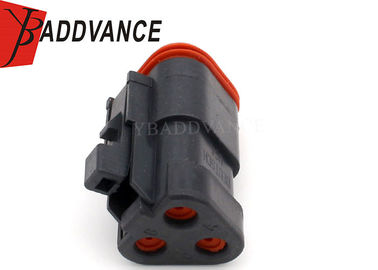

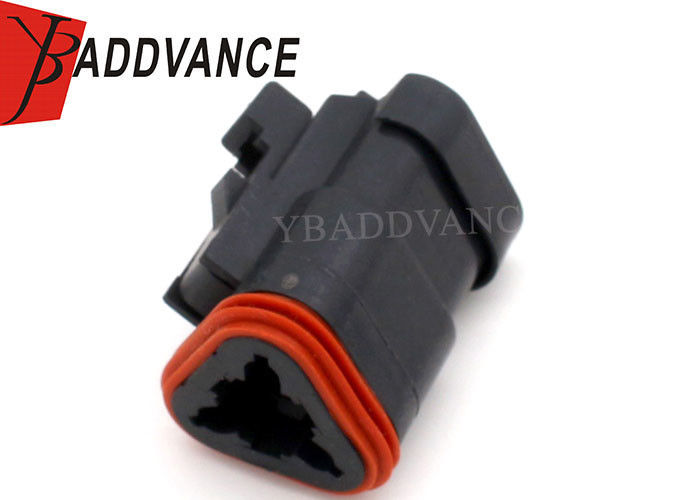

Product Picture Details
