Product Details:
Payment & Shipping Terms:
|
| Gender: | Female | Martial: | PBT/PA66 |
|---|---|---|---|
| Color: | Black | P/N: | HD16-9-1939S |
| Way: | 9 Hole | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | Deutsch Connector |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
HD16-9-1939S 9 Position Circular TE Connectivity Connector with Coupling Ring
Description
9 Position Circular TE Connectivity Connector with Coupling Ring
It is Universal Diagnostic Connector
Flange/In-line/PCB Mount: In-line
Series : HD10 Series
Shell Size : Insert 9-39
Height: 41.46 mm
Length: 40.36 mm
Width: 40.39 mm
Mating connector: HD10-9-1939P
Mating Pin Diameter : 1.5 mm
The HD10 Connectors are cylindrical and are quickly and easily inserted and removed eliminating problems associated with assembly and maintenance time.
HD10 Series is heavily used for diagnostic connectors, eliminates problems associated with assembly and maintenance time, and is designed for long service life.
Specification
|
Item name |
HD16-9-1939S 9 Position Circular TE Connectivity Connector with Coupling Ring |
| P/N | HD16-9-1939S |
|
Wire Size |
14-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
9 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 9 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

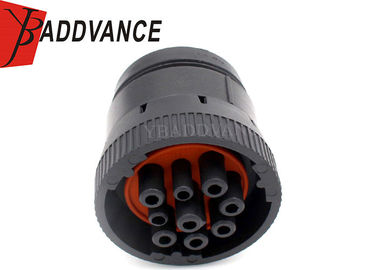

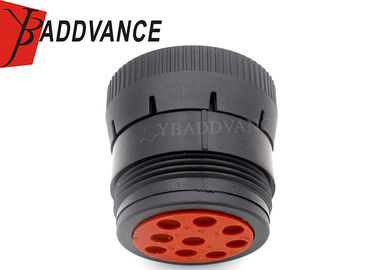

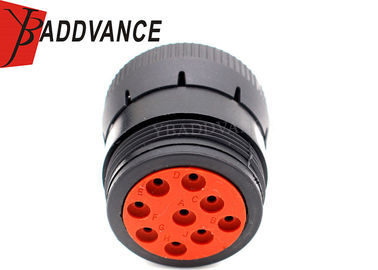

Product Picture Details
