Home ProductsDeutsch Automotive Connectors

HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector

HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector
HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector

Large Image :  HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: HD10-9-1939P

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Gender: Female Martial: PBT/PA66
Color: Black P/N: HD10-9-1939P
Way: 9 Hole Feature: Waterproof
HS Code: 8536909000 Type: Deutsch Connector
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

deutsch dt series connectors

,

te connectivity deutsch connectors

HD10-9-1939P 9 Pin Round Flange Threaded Rear Receptacle Connector







Description



HD10-9-1939P 9 Pin Round Flange Threaded Rear Receptacle Connector

It is Universal Diagnostic Connector

Mounting Feature: Flange

Series : HD10 Series

Modification: J1939 Type II

Mating connector:  HD16-9-1939S

Mating Pin Diameter : 1.5 mm

Wire Gauge Range:  20 AWG to 14 AWG

Seal Diameter: 2.54MM (.100") - 3.81mm (.150")

HD10 connectors are available with arrangements from 3 to 9 cavities and accept size 4, 12, or 16 Deutsch contacts (100-13 amps).









Specification



Item name

HD10-9-1939P 9 Pin Round Flange Threaded Rear Receptacle Connector
P/N HD10-9-1939P

Wire Size

14-20AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

9 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  9 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

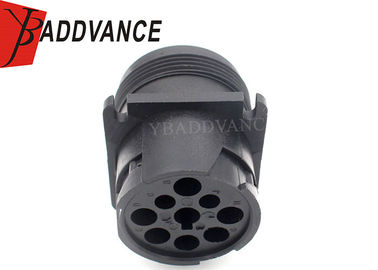

HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector 0

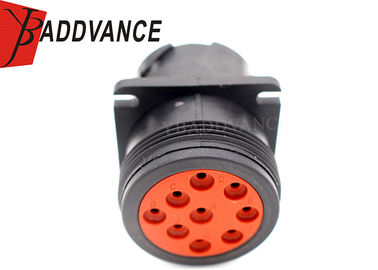

HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector 1

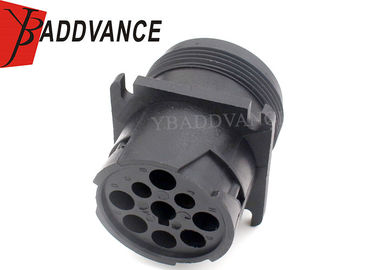

HD10-9-1939P 9 Pin Round Connector Flange Threaded Rear Receptacle Connector 2
