DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style

DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style
DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style

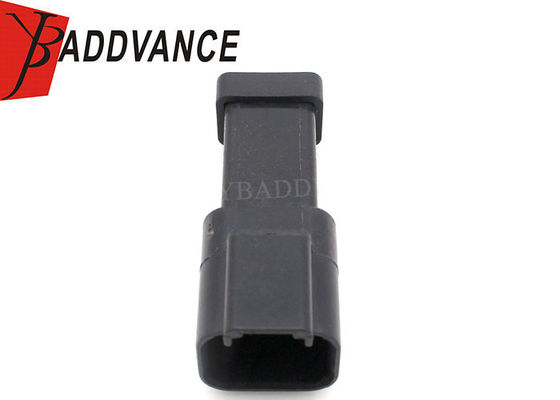

Large Image :  DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DT04-2P-E005

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
  • Product Details
Detailed Product Description
Gender: Male Martial: PBT/PA66
Color: Black P/N: DT04-2P-E005
Way: 2 Hole Feature: Waterproof
HS Code: 8536909000 Type: 2 Way Deutsch Connector
High Light:

deutsch waterproof connectors

,

deutsch dt series connectors

DT04-2P-E005 2 Pin TE Connectivity Deutsch CBL BLK Receptacle Connector





Description



2 Pin TE Connectivity Deutsch CBL BLK Receptacle Connector

Height : 46.18 mm

Width : 17.02 mm

Length :  17.15 mm
Centerline (Pitch) : 5.46 mm

Wire Gauge Range:  20 AWG to 14 AWG
Required Wedgelock: W2P

Modification: End Cap

Connector Style: Receptacle

Amperage Rating: 13

The sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.





Specification



Item name

DT04-2P-E005 2 Pin TE Connectivity Deutsch CBL BLK Receptacle Connector
P/N DT04-2P-E005

Wire Size

14-20AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style 0

DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style 1

DT04-2P-E005 Deutsch Automotive Connectors 2 Pin TE Connectivity Receptacle Style 2
