Product Details:
Payment & Shipping Terms:
|
Gender: | Male | Martial: | PBT/PA66 |
---|---|---|---|
Color: | Black | P/N: | DT04-6P-E005 |
Way: | 6 Hole | Feature: | Waterproof |
HS Code: | 8536909000 | Type: | Deutsch Connector |
WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
High Light: | deutsch dt series connectors,te connectivity deutsch connectors |
DT04-6P-E005 6 Pin Male Deutsch DT Series Receptacle Connector
Description
6 Pin Male Deutsch DT Series Receptacle Connector
Height : 47.45 mm
Width : 24.69 mm
Length : 20.83 mm
Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 4.5 mm
Wire Size: 14, 16, 18, 20
Required Wedgelock: W6P
Series : Deutsch CAT DT Series. Meets Caterpillar Specifications.
6 circuit receptacle housing with protective end cap.
It including the male wedge and pins.
DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.
Specification
Item name |
DT04-6P-E005 6 Pin Male Deutsch DT Series Receptacle Connector |
P/N | DT04-6P-E005 |
Wire Size |
14-20AWG |
Operating Temperature range |
-40℃~125℃ |
Insulation resistance |
100M Min. |
MOQ |
100 units/lot |
Key words |
6 pin waterproof Connector |
Design Tooling |
Sending us samples or drawing to design it |
Delivery Time |
About 5-8 work days |
Sealed/Unsealed |
sealed |
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
The number of hole | 6 way |
Color | Black |
Warranty | 1 year |
Application | Automoive Motorcycles |

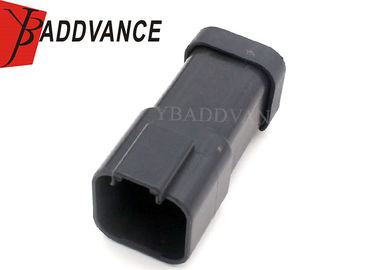

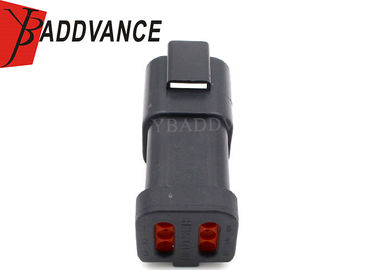

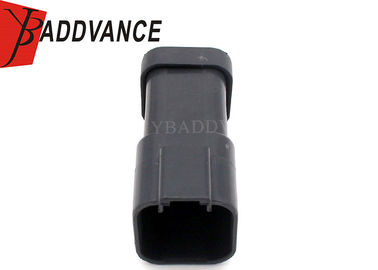

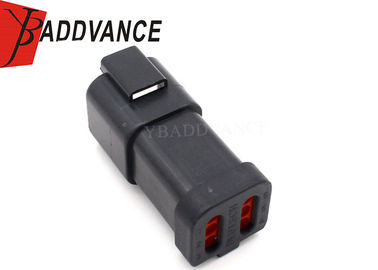

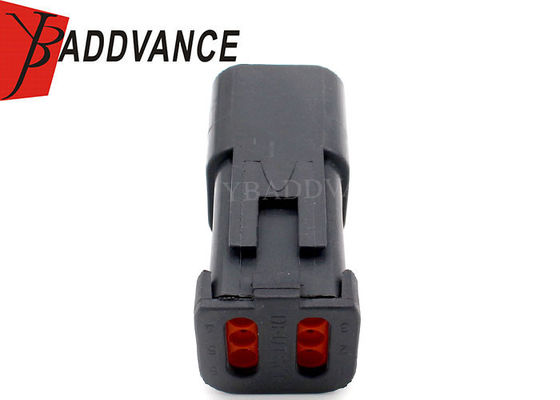

Product Picture Details
