Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector

Certification
Good quality Sumitomo Automotive Connectors for sales
I'm Online Chat Now

Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector

China Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector supplier
Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector supplier Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector supplier Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector supplier Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector supplier Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector supplier

Large Image :  Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 211PC249S0005

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Contact Now
Detailed Product Description
Color: Grey Martial: PBT/PA66
Gender: Female P/N: 211PC249S0005
Way: 24 Hole Feature: Waterproof
HS Code: 8536909000 Type: FCI Connector
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China

211PC249S0005 24 Pin Female FCI ECU Sealed Automotive Connector







Description



24 Pin Female FCI ECU Sealed Automotive Connector

Length: 33.6mm
Width : 51.6mm
Height : 32.5mm

Other part number:

DJ7242-1.5/2.8-21

211PC249S8005
211PL249S0005
211PL249S8005
Material: PA66
Application: Automotive, Lighting

Maximum Operating Temperature: 125℃
Minimum Operating Temperature: -40℃

If you want more, the price will be cheaper.please feel free to contact us to get cheaper price!









Specification



Item name

211PC249S0005 24 Pin Female FCI ECU Sealed Automotive Connector
P/N 211PC249S0005

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

24 pin waterproof Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  24 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles

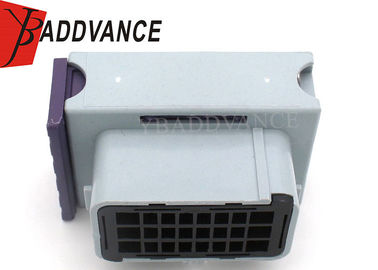

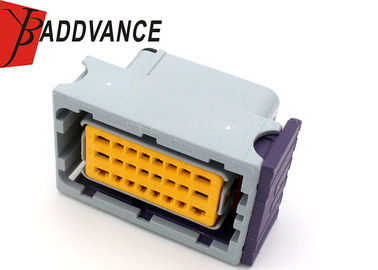

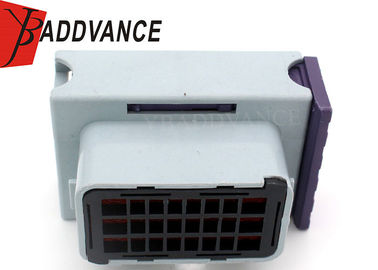

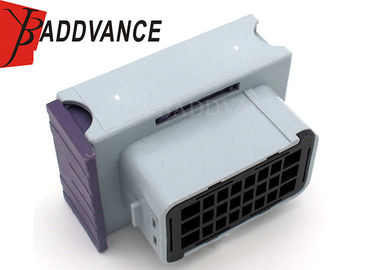

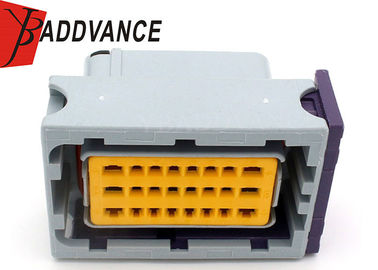

Product Picture Details



Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector

Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector

Grey Color Automotive ECU Connectors 211PC249S0005 24 Pin Female Connector
