Product Details:
Payment & Shipping Terms:
|
| Color: | Green | Gender: | Female |
|---|---|---|---|
| Martial: | PBT/PA66 | P/N: | BC-7454 23731-6J90B |
| Way: | 3 Hole | Feature: | Waterproof |
| Type: | Ket Connector | HS Code: | 8536909000 |
| High Light: | rh connector,waterproof auto electrical connectors |
||

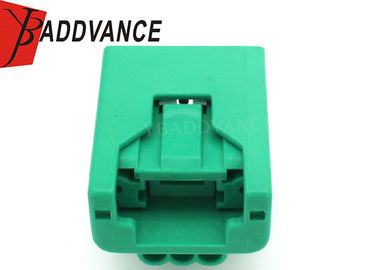

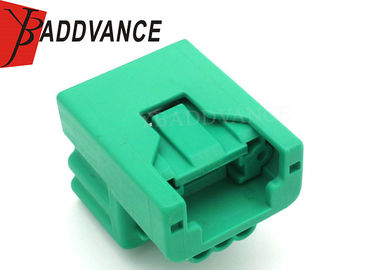

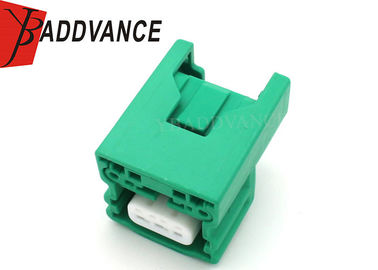

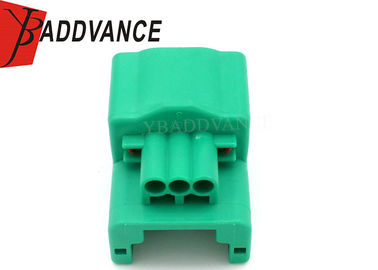

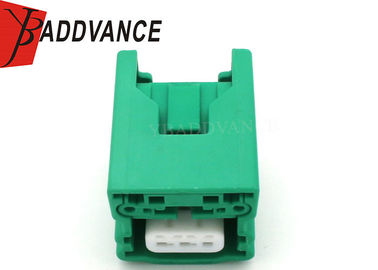

3 Pin Female Green Ket Camshaft Position Sensor 23731-6J90B Connector for Nissan
Description
3 Pin Female Green Ket Camshaft Position Sensor 23731-6J90B Connector for Nissan
It is used for Nissan Camshaft Position Sensor 23731-6J90B
1 Row ,3 Way,green color
Each set include: 1 housing plug+3 terminal+3 wire seals
Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
Fits wire from 18 to 22 AWG
Temperature range: -40℃~125℃
12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused).
Defective items MUST BE reported and returned within the warranty period
If you have any questions and concern for it , please contact us freely
Specification
|
Item name |
3 Pin Female Green Ket Camshaft Position Sensor Connector for Nissan |
| P/N | BC-7454 23731-6J90B |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Green |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
