4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810

4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810
4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810

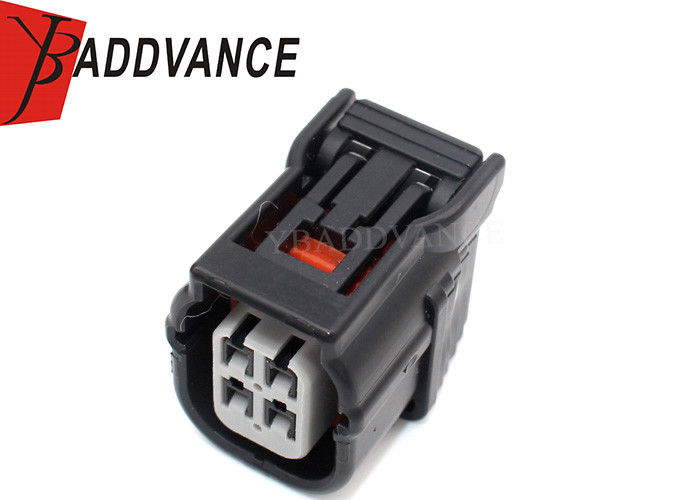

Large Image :  4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-7039 6918-2810

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black Martial: PBT/PA66
P/N: 6189-7039 6918-2810 Gender: Female
Feature: Waterproof Way: 4 Hole
HS Code: 8536909000 Type: Sumitomo Connector
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo 4 pin connector

,

sumitomo terminal connector

4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810





Description



4 Pin Sumitomo Acura O2 Sensor Connector

It is HV/HVG Series 040 O2 Sensor Automotive Connector

Please check the photos to ensure that it fits your application

2 Row ,4 way

Width :19.3 mm

Height: 21.4 mm

Length :26.1mm

Mating Part : 6188-4776

Related product: Lock : 6918-2810

Width :13.2 mm

Length : 10.4mm

Series: HV/HVG sealed series

It come with :1 housing +4 wire seal +4 terminals +1 lock +1 inner seal

Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.

We can provide dummy plug if you need it









Specification



Item name

4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810
P/N 6189-7039 6918-2810

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

4 pin Sumitomo Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  4 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles

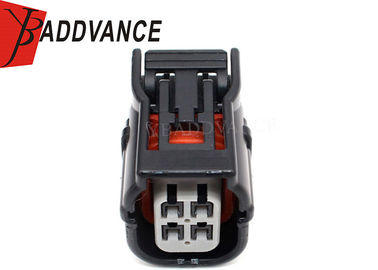

Product Picture Details

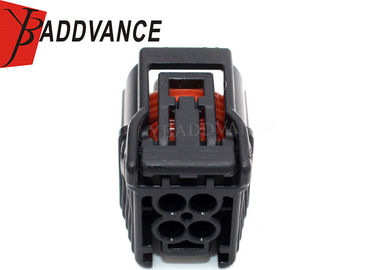

4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 0

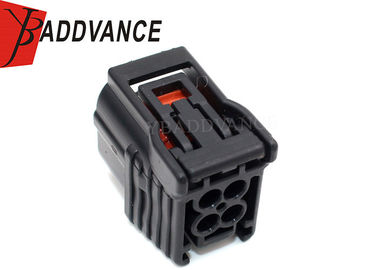

4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 1

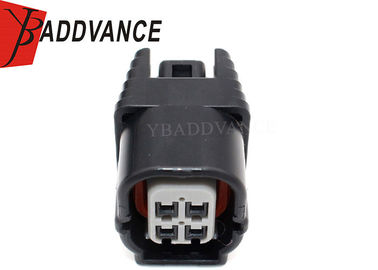

4 Pin Sumitomo Acura O2 Sensor Connector 6189-7039 6918-2810 2
