Product Details:
Payment & Shipping Terms:
|
| Sumitomo P/N: | 6195-0030 | Series: | DL 090 Series |
|---|---|---|---|
| Materials: | PBT | Color: | Dark Gray |
| Way: | 4 Way | Number Of Rows: | 1 |
| Gender: | Female | Application: | RX7 Ignition Coil Connectors |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | throttle position sensor connector,ignition coil pack connector |
||

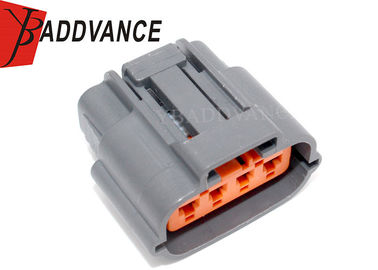

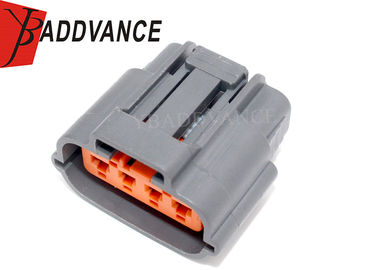

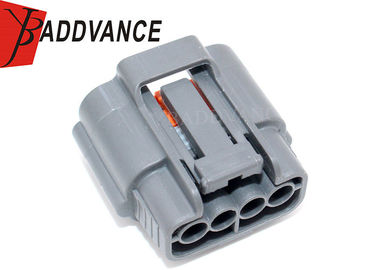

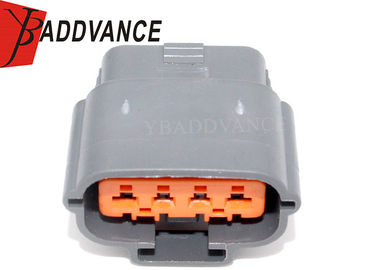

Sumitomo DL090 4 Pin 4 Way RX7 Ignition Coil Connectors Fit For 95-97 Mazda 6195-0030
Product Description
4 way Sumitomo DL 090 Series connector plug with tinned terminals and red cable seals. Crimp using a tool that produces a "W" and "O" shaped crimper.
Application for
Fit for Subaru EJ25 ignition coil
Connector Dimensions
Terminals: 2.3mm
Length: 28mm2, Width: 32.2mm, Height: 19.7mm
What's Included:
1Xfemale 4 Way Connector
1Xinner seal
1XHarness Lock
4X Wire Terminal 22-18AWG
4X Wire Seal
Specification
| Keywords | 4 Pin Ignition Coil Connectors |
| Sumitomo Part Number | 6195-0030 |
| Series | DL 090 sealed series |
| Male/Female | female |
| Material | PBT |
| Gender | F |
| Way |
4 way |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Dark Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
