Product Details:
Payment & Shipping Terms:
|
| Application: | O2 Sensor | Series: | Sumitomo DL 090 Sealed Series |
|---|---|---|---|
| Sumitomo P/N: | 6195-0015 | Color: | Gray |
| Way: | 4 Way | Number Of Rows: | 2 |
| Gender: | Female | Material: | PBT |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo 2 pin connector,sumitomo terminal connector |
||

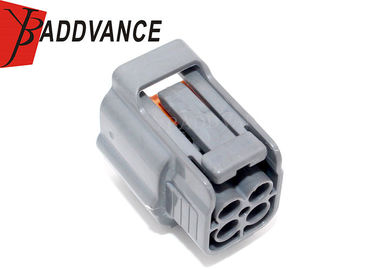

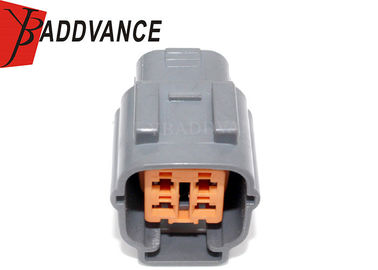

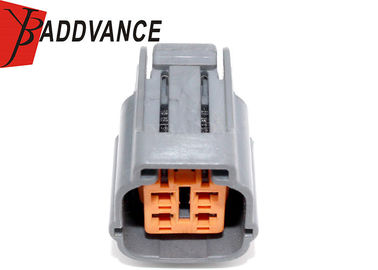

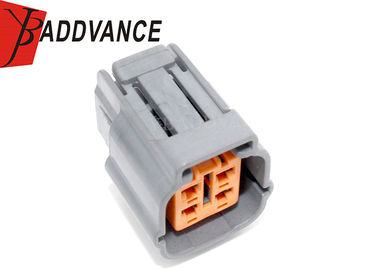

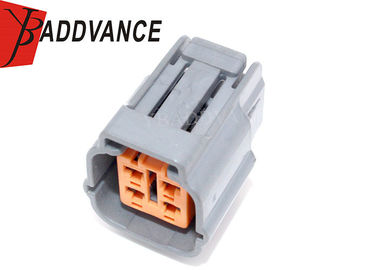

4 Pin Sumitomo DL 090 Sealed Female Connector 6195-0015 With Terminals and Seals
Product Description
YBADDVANCE 4 Pin female connector with Waterproof housing with inner seal, and a seal for each wire.
Terminals Fit wire size .3 - .85 mm (18-22 AWG)
What's Included:
1Xfemale 4 Way Connector
1Xinner seal
1XHarness Lock
4X Wire Terminal 22-18AWG
4X Wire Seal
Specification
| Keywords | 4 Pin sumitomo female connector |
| Sumitomo Part Number | 6195-0015 |
| Series | Sumitomo DL 090 sealed series |
| Male/Female | female |
| Material | PBT |
| Gender | F |
| Way |
4 way |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
