Product Details:
Payment & Shipping Terms:
|
| Lock NO.: | 6918-0326 | Mating Part No.: | 6181-0072(HW Sealed Series) |
|---|---|---|---|
| Female P/N: | 6189-0131 | Color: | DARK Gray |
| Way: | 3 Way | Tab Size(mm): | 2.3mm(090) |
| Sealed/Unsealed: | Sealed | Material: | PBT |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo mt connector,sealed sensor connector |
||

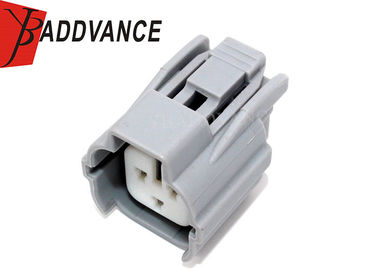

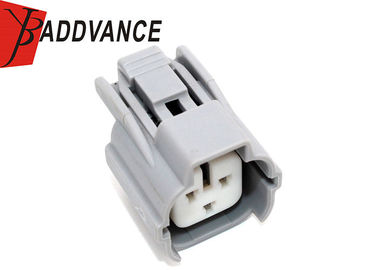

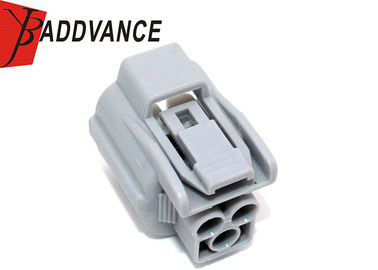

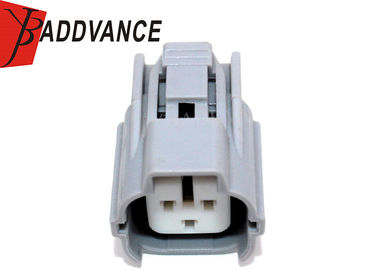

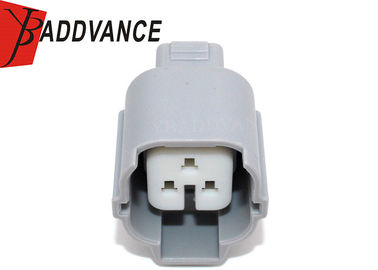

3 Way Sumitomo HW Series Car Camshaft Speed Sensor Connector 6189-0131
Product Description
3 Pin HW Female Connector with Retainer, Terminals, & Seals
Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)
Female Part numbers 6189-0131, 6918-0326,
Female Part numbers 6181-0072, 6918-0327
What's Included :
1Xfemale 3 Way Connector
1XHarness Lock
3X Wire Terminal 18-16 AWG
3X Wire Seal
Specification
| Keywords | 3 way speed sensor connector |
| Sumitomo Part Number | 6189-0131 |
| Series | HW sealed series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 2 |
| Way |
3 |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Dark Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
