Product Details:
Payment & Shipping Terms:
|
| Wire Gauge: | 0.75 Mm² | Gender: | Male |
|---|---|---|---|
| Mating Part No.: | 6189-0129 | Sumitomo Part No.: | 6181-0070 |
| TPA No.: | 6918-0323 | Tab Size(mm): | 2.3mm(090) |
| Faminly: | HW Sealed Series (old Series) | Material: | PBT |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo mt connector,sumitomo electric connectors |
||

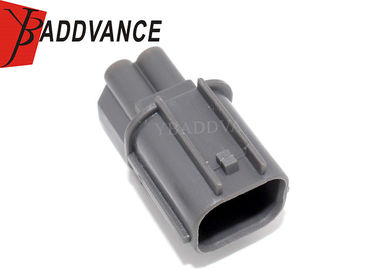

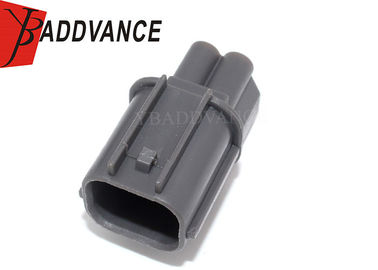

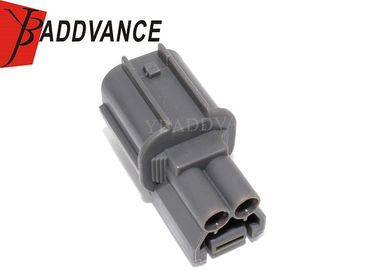

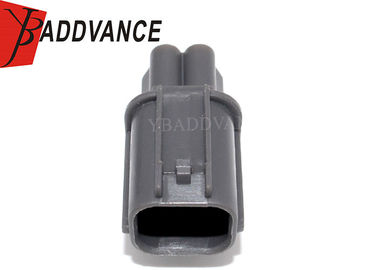

2 Pin HW 090 Male Connector 6181-0070 Fit For OBD1 Honda Vtec Solenoid Connectors
Product Description
2 Pin HW Sealed Series Male Connector Kit 6181-0070 with Retainer, Terminals, & Seals
Terminal wire size .5 - 1.3 mm (16-22 AWG)
YBADDVANCE Made with the same OEM connectors, terminals and seals as the factory harness
Terminal
2.3mm 1500-0105
2.3mm 1500-0134
Wire seals
2.3mm 7165-0385
2.3mm 7165-0118
2.3mm 7165-0119
What's Included:
1XMale 2 Way Connector
1XHarness Lock
2X Wire Terminal 18-16 AWG
2XWire Seal
Specification
| Keywords | 2 pin sumitomo male connector |
| Sumitomo Part Number | 6181-0070 |
| Series | HW sealed 2.3mm 090 series |
| Gender | male |
| Material | PBT |
| Number of Rows | 1 row |
| Number of Pin |
2 pin |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Dark Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
More details about pictures
