6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda

6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda
6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda

Large Image :  6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6188-4739

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 6188-4739 Martial: PBT/PA66
Color: Black Gender: Female
Feature: Waterproof Type: Sumitomo Connector
Way: 3 Hole HS Code: 8536909000
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo electric connectors

,

sealed sensor connector

6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda





Description



3 Way Sumitomo Center Rib Tail Light Connector for Honda

It is Waterproof Car Plug Turn Socket Auto Connector Harness Repair Kit for Civic Element CR-V

Applications
Some late Model CBR1000 MAP, TPS Sensors
Some late model H onda tail light connectors

Width :20.1 mm

Height: 17.7 mm

Length :35.7 mm

1 Row , 3 Way

Mating Part : 6189-0887

It is middle rib/slot , please check it carefully before you buy it









Specification



Item name

6188-4739 3 Way Sumitomo Center Rib Tail Light Connector for Honda
P/N 6188-4739

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin Sumitomo Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

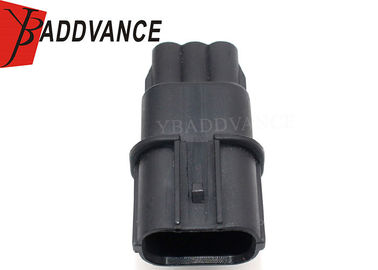

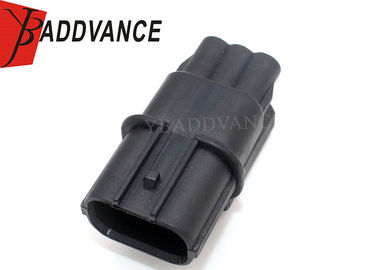

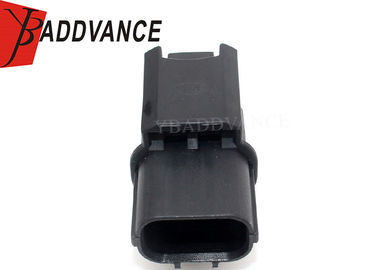

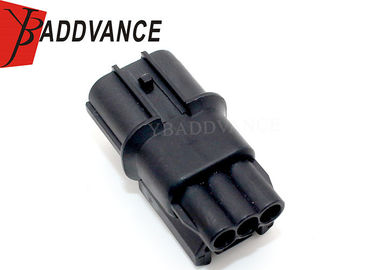

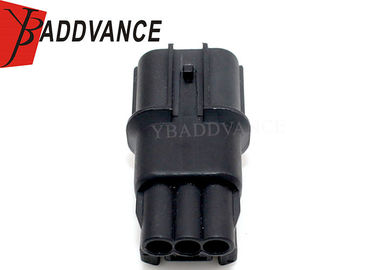

6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 0

6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 1

6188-4739 3 Way Sumitomo Center Rib Tail Light  Connector for Honda 2
