Product Details:
Payment & Shipping Terms:
|
| TPA NO.: | 6918-0322 (Lock) | Mating Part No.: | 6181-0070 |
|---|---|---|---|
| Female P/N: | 6189-0129 | Color: | DARK Gray |
| Material: | PBT | Tab Size(mm): | 2.3mm(090) |
| Faminly: | HW Sealed Series (old Series) | Number Of Position: | 2 Pin |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo mt connector,sumitomo electric connectors |
||

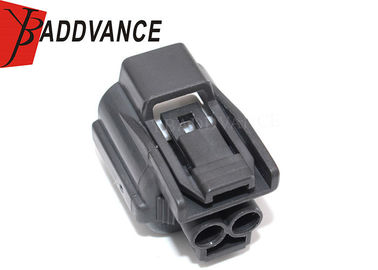

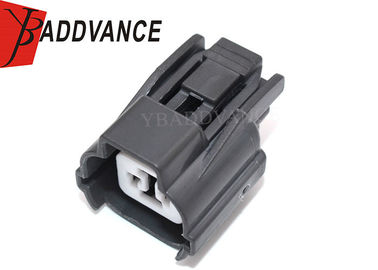

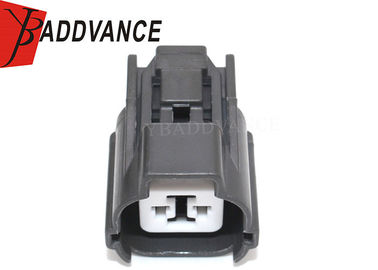

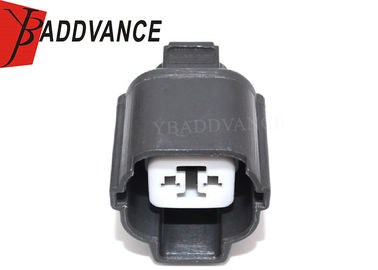

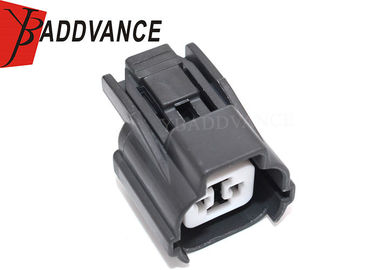

2 Way Sumitomo HW Series Sealed Female Connector Kit 6189-0129 For Rear Door Lock
Product Description
Sumitomo 6189-0129 connector HW sealed series 2.3mm(090) female 2 way housing
Connector type: housing
2 Wire Sumitomo HW Sealed Series
YBADDVANCE Made with the same OEM connectors, terminals and seals as the factory harness
Sumitomo Part #: 6189-0129
6918-0322 (Lock)
What's Included:
1X2 Way Connector
1XHarness Lock
2X Wire Terminal 18-16 AWG
2X Wire Seal
Specification
| Keywords | 2 way sumitomo female connector |
| Sumitomo Part Number | 6189-0129 |
| Series | HW sealed 2.3mm 090 series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 1 row |
| Number of Pin |
2 pin |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial 49.0kPa Min. after durability tests 29.4kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Dark Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
