6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913

6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913
6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913

Large Image :  6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-4070 6918-2913

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Martial: PBT/PA66 P/N: 6189-4070 6918-2913
Type: Sumitomo Connector Color: Black
Feature: Waterproof Gender: Female
Way: 6 Hole HS Code: 8536909000
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo 4 pin connector

,

sumitomo terminal connector

6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913



Description



6 Pin HV Sealed Tail Light AFR Sensor Connector

H onda/Acura Air/Fuel Ratio - AFR Sensor Connector
H onda Motorcycle Tail light Connector

2 Row , 6 Way

Width :23.4 mm

Height: 21.4mm

Length :26.1 mm

Series : HV/HVG sealed series

Mating Part : 6188-4908

It come with 1 housing +6 wire seals+6 terminals+1 Lock

Related Product : Lock : 6918-2913

Height :13.2 mm

Width : 14.5mm









Specification



Item name

6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913
P/N 6189-4070 6918-2913

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

6 pin Sumitomo Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  6 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

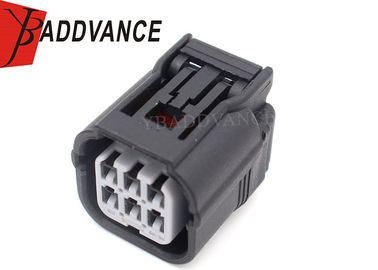

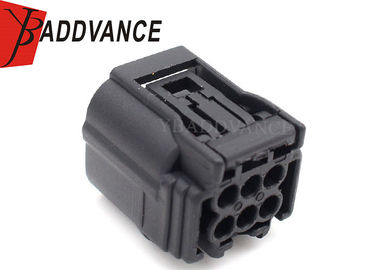

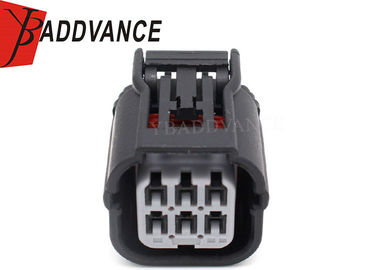

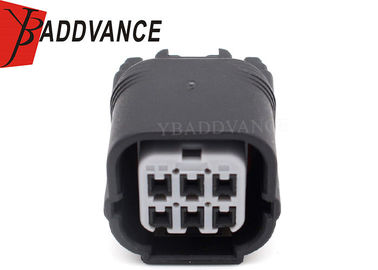

6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 0

6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 1

6 Pin HV Sealed Tail Light AFR Sensor Connector 6189-4070 6918-2913 2
