Product Details:
Payment & Shipping Terms:
|
| Color: | Black | P/N: | 6188-0589 |
|---|---|---|---|
| Martial: | PBT/PA66 | Type: | Sumitomo Connector |
| Feature: | Waterproof | Way: | 2 Hole |
| Gender: | Female | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo 2 pin connector,sumitomo terminal connector |
||
2 Way Male Sumitomo HX 040 Sealed Automotive Connector 6188-0589
Description
2 Way Male Sumitomo HX 040 Sealed Automotive Connector
Connector with Middle Slot/Rib. Please check the photos to ensure that it fits your application
Width :16 mm
Height: 17.7 mm
Length :35.7 mm
Mating Part : 6189-0890 ,6918-1835
Materials:PBT
Color: Black
It come with 1 housing +2 wire seals+2 terminals+ 1 Lock
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
We can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Way Male Sumitomo HX 040 Sealed Automotive Connector 6188-0589 |
| P/N | 6188-0589 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Sumitomo Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

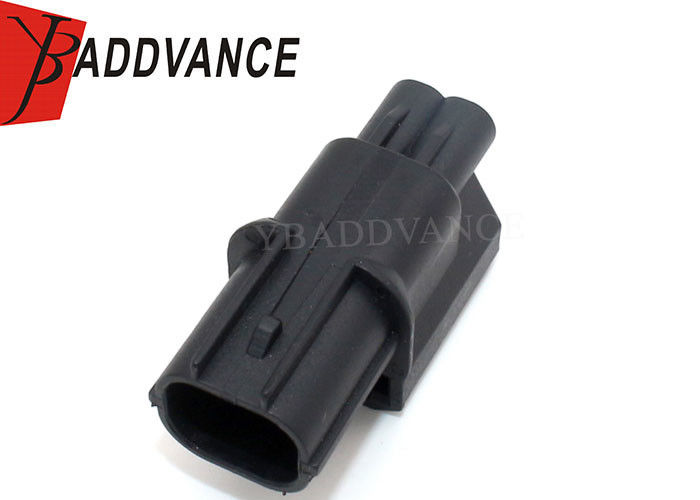

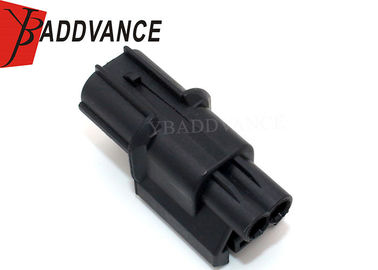

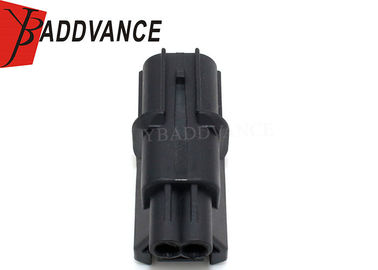

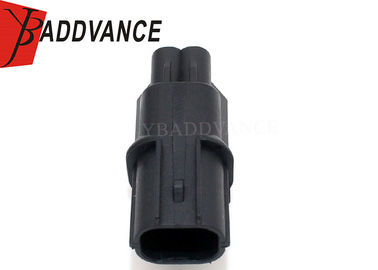

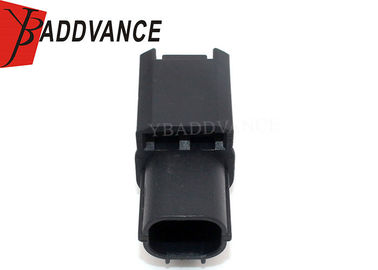

Product Picture Details
