6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8
6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8

Large Image :  6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6195-0012

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 6195-0012 Color: Grey
Feature: Waterproof Way: 3 Hole
Gender: Female And Male Type: Sumitomo Connector
Martial: PBT/PA66 HS Code: 8536909000
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo 2 pin connector

,

sumitomo terminal connector

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8





Description



 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8

It is diesel engine camshaft speed sensor plug heavy truck sensor connector

1 Row , 3 way

Series : DL 090 Sealed

Including : 3 Pin Housing Connector+Secondary Lock+3 Wire Terminals+3 Wire Seals

Length :38mm

Width : 25mm

Height : 14.7mm

Mating part :  6195-0009

Fits wire : 18 -22 AWG

The connectors have a maximum current capacity of 10 Amps

If you need more, please contact with us to get cheaper price.

Our product is high quality with reasonal price









Specification



Item name

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8
P/N 6195-0012

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

3 pin Sumitomo Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  3 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

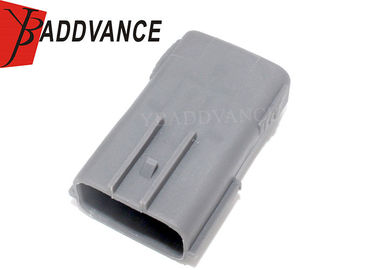

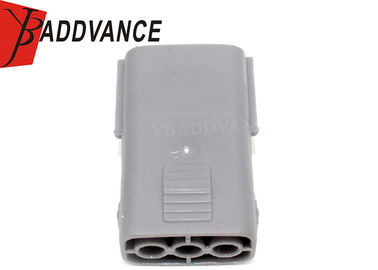

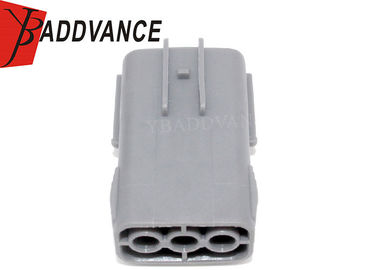

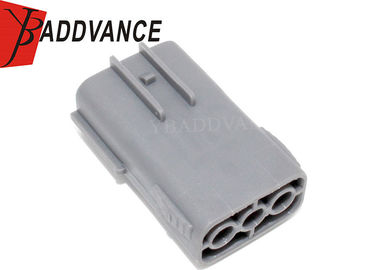

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 0

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 1

6195-0012 3 Pin Sumitomo Ignition Coil Connector For Nissan Mazda RX8 2
