Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | DT04-12P | Color: | Grey |
|---|---|---|---|
| Type: | Deutsch Connector | Gender: | Male |
| Way: | 12 Hole | Feature: | Waterproof |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| High Light: | deutsch waterproof connectors,te connectivity deutsch connectors |
||

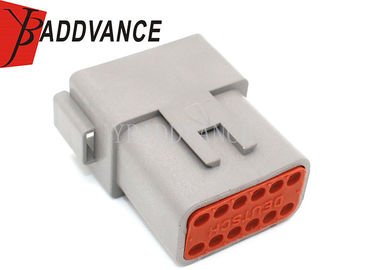

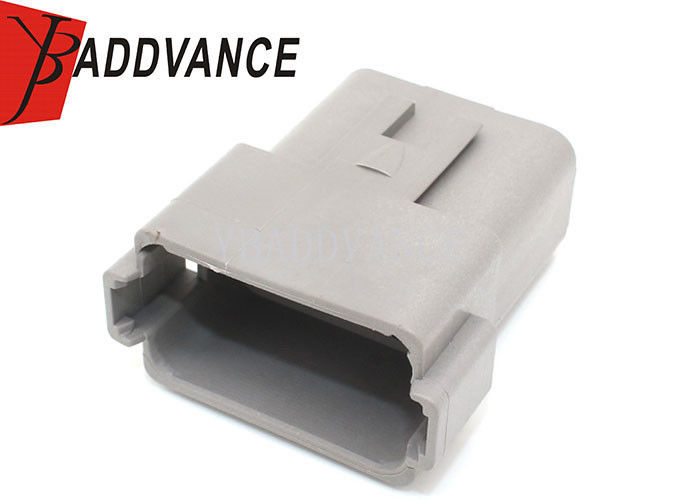

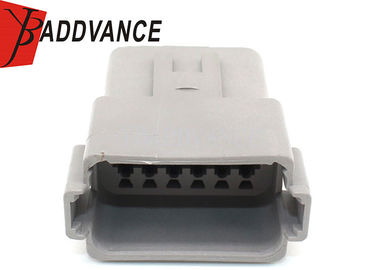

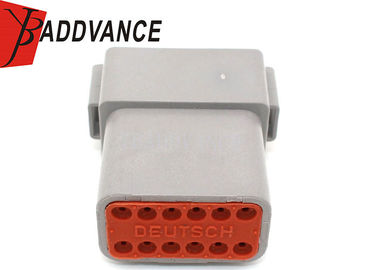

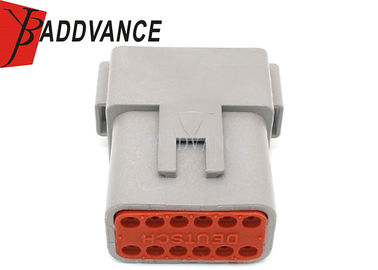

12 Pin Receptacle Connector with Wedge lock and Terminals DT04-12P
Description
12 Pin Receptacle Connector with Wedge lock and Terminals
TE Connectivity / DEUTSCH DT Family of connectors are environmentally-sealed connectors designed for cable to cable applications on the engine or transmission, under the hood, on the chassis, or in the cab.
DT Series general purpose connectors provide reliability and performance at a low cost.
Centerline (Pitch) :4.5 mm
Height: 22.2mm
Width: 40.6 mm
Length : 43.6 mm
The Deutsch DT series of connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.
The wide range of sizes, cavities and available specialized modifications makes the Deutsch DT series perfect for use in automotive and marine wiring harness systems, industrial equipment wiring, and any wiring installation where reliability and servicability are primary concerns.

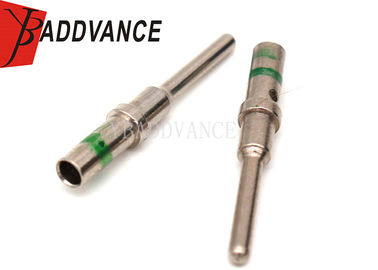

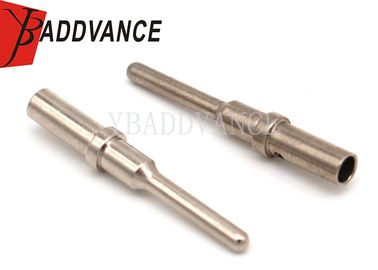

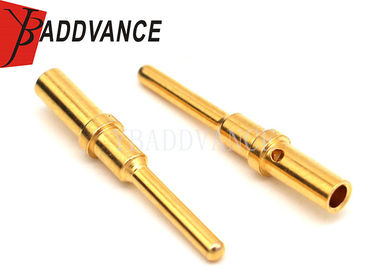

DT series connectors accept 16size pins and sockets with 13amp continuous current capacity and accommodate wire sizes 12AWG to 20AWG.
Specification
|
Item name |
12 Pin Receptacle Connector with Wedge lock and Terminals DT04-12P |
| P/N | DT04-12P |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
12 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 12 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
