Product Details:
Payment & Shipping Terms:
|
| P/N: | DTM06-8S ATM06-8S | Type: | Deutsch Connector |
|---|---|---|---|
| Gender: | Female | Number Of Contacts: | 8 |
| Way: | 8 Pin | Wedge Lock Part#: | WM8S |
| HS Code: | 8536909000 | Name: | 8 Pin Deutsch Connector |
| High Light: | deutsch waterproof connectors,te connectivity deutsch connectors |
||

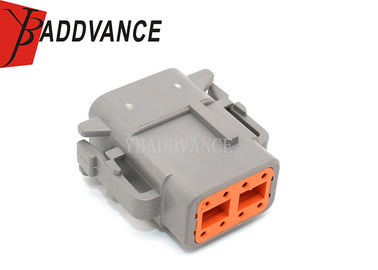

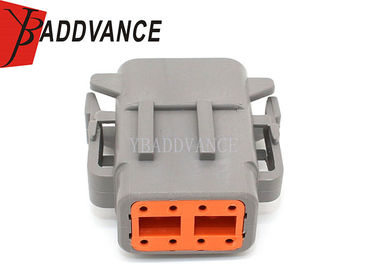

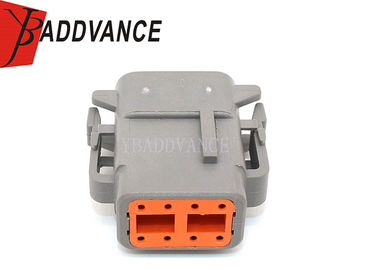

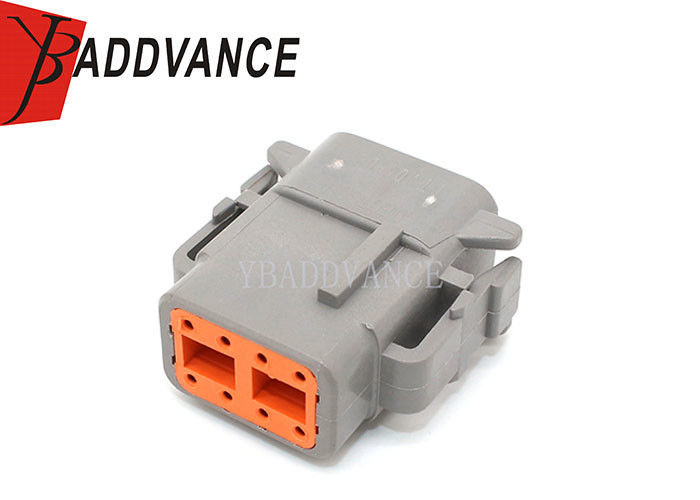

TE Deutsch Connectors Mini DTM Series Plug DTM06-8S ATM06-8S
Description
DTM06-8S 8 way 8-Pin female Plug DTM Deutsch Mini Series with assembly kits together.
Deutsch DTM Series
Includes DTM Series Wedge Lock(WM-8S)

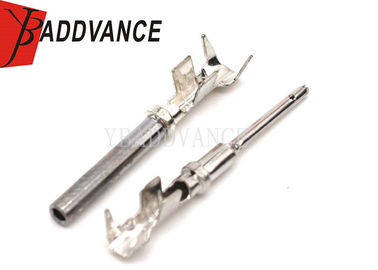

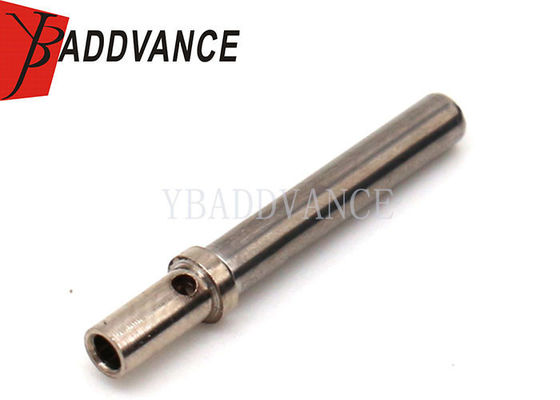

Includes 8 Mini Female Sockets(0462-201-20141) Or (1062-20-0222)
Specification
|
Item name |
DTM Series 8 Pin female connector |
| P/N | DTM06-8S ATM06-8S |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 Pin dtm female connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Gray |
| Warranty | 1 year |
| Note | Rated for 7.5 AMP |
Product Picture Details
