Product Details:
Payment & Shipping Terms:
|
| Color: | Gray | P/N: | DTM04-8P |
|---|---|---|---|
| Type: | Deutsch Connector | Gender: | Male |
| Feature: | Waterproof | Way: | 8 Pin |
| Martial: | Nylon GF 20 | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
8 Pin 8 Way Male Deutsch Connector Receptacle DTM04-8P ATM04-8P
Description
YBADDVANCE 8 way is smallest of the DTM range. Thermoplastic housing with mil spec contact and seal, this is a cost effective, reliable alternative to full military connectors.

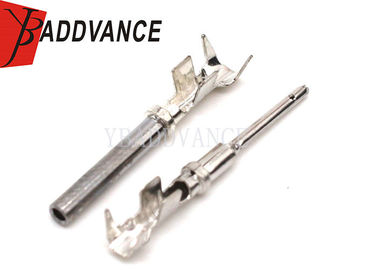

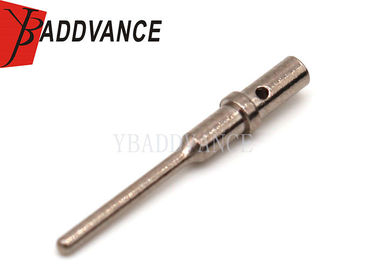

This connector come with housing, pin contacts, wedge lock.
Specification
|
Item name |
Deutsch 8 Pin Mini DTM Series Receptacle Housing |
| P/N | DTM04-8P ATM04-8P |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 Pin dtm male connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Gray |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

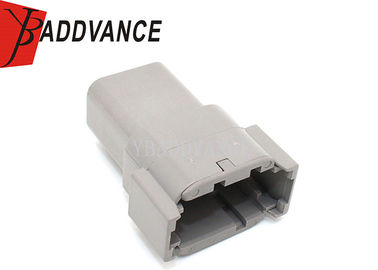

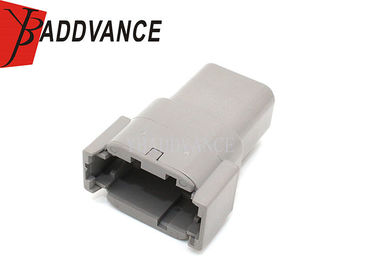

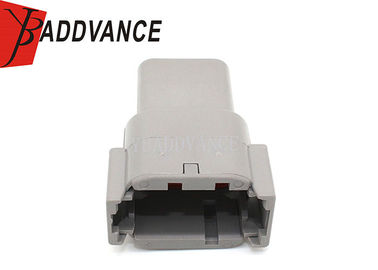

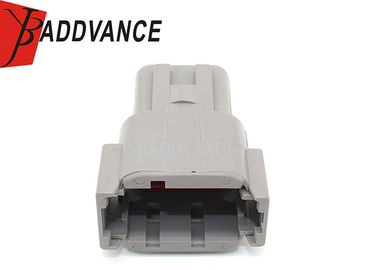

Product Picture Details
