12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

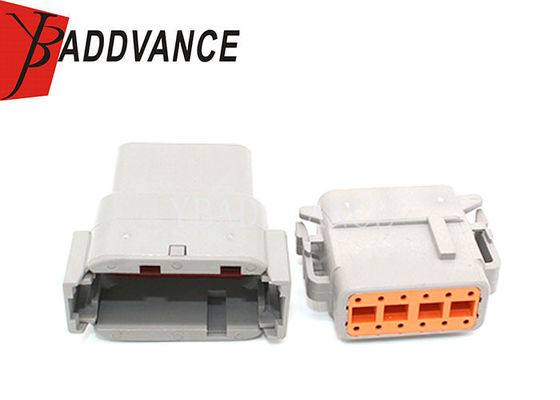

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P
12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P

Large Image :  12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: DTM06-12S DTM04-12P

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: DTM06-12S DTM04-12P Color: Grey
Type: Deutsch Connector Way: 12 Hole
Gender: Female And Male Feature: Waterproof
Martial: PBT/PA66 HS Code: 8536909000
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

deutsch dt series connectors

,

te connectivity deutsch connectors

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P





Description



12 Pin Female and Male DTM Housing Connector

2 Row , 12 way
Configuration : 1 Female connector +1 Male connector
Wire Range : 20-16 Awg
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature Range: -55°C to 105°C

The DTM connector line was developed to fill the need for lower amperage, multi-pin connectors.

Contact insertion and removal does not require any special tools.

Contacts are retained in locked position by dielectric fingers which are moulded as an integral part of the housing.

Wedgelocks are assembled at the mating interfaces to ensure contact positioning.







Specification



Item name

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P
P/N DTM06-12S DTM04-12P

Wire Size

20-22AWG

Operating Temperature range

-55℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

12 pin Deutsch Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  12 way
Color  Grey
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 0

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 1

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 2

12 Pin Female and Male DTM Housing Connector DTM06-12S DTM04-12P 3
