Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | P/N: | DTM04-12P |
|---|---|---|---|
| Type: | Deutsch Connector | Gender: | Female |
| Way: | 12 Hole | Feature: | Waterproof |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||

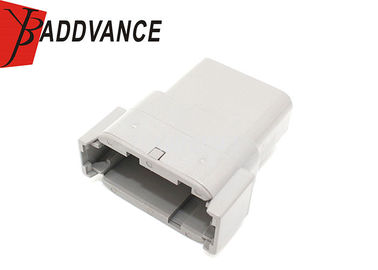

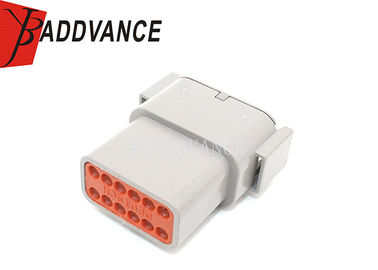

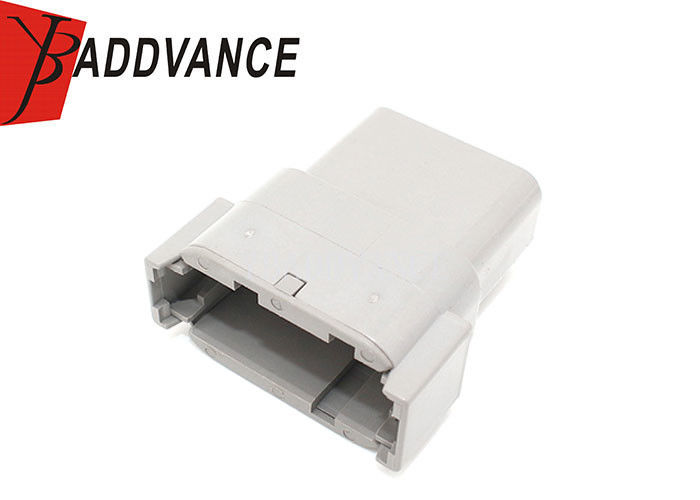

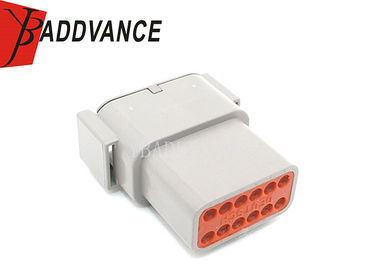

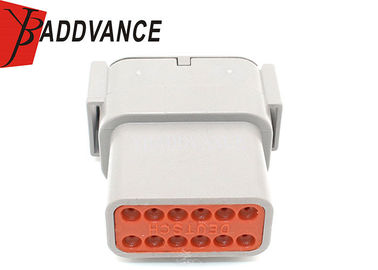

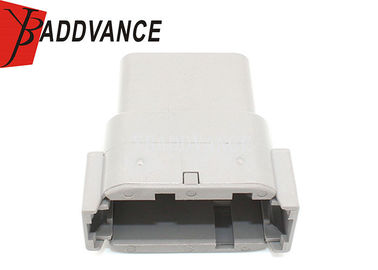

12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P
Description
12 Pin Male DTM Series Receptacle Housing Connector
Wedgelock: WM-12P

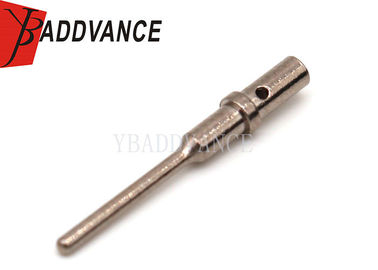

Terminals: 0460-202-20141
Series : DTM-Series
Configuration : 12 Way Receptacle Housing + 1 Wedgelock+12 terminals +12 wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature : continuous duty from -67°F to 221°F (-55°C to 105°C)
The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.
The DTM connector line was developed to fill the need for lower amperage, multi-pin, inexpensive connectors.
Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.
Specification
|
Item name |
12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P |
| P/N | DTM04-12P |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-55℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
12 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 12 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
