Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | P/N: | DTM06-3S |
|---|---|---|---|
| Type: | Deutsch 3 Pin Connector | Gender: | Female |
| Feature: | Waterproof | Way: | 3 Hole |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| High Light: | deutsch dt series connectors,te connectivity deutsch connectors |
||

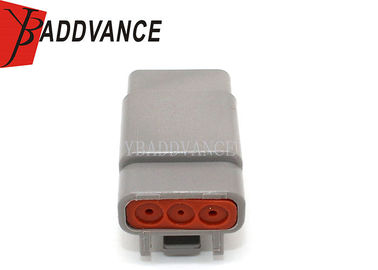

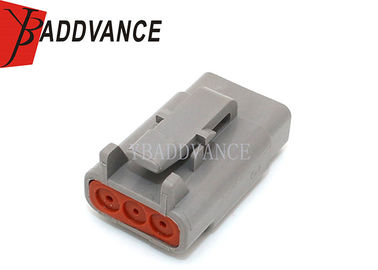

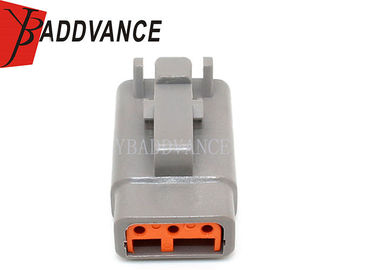

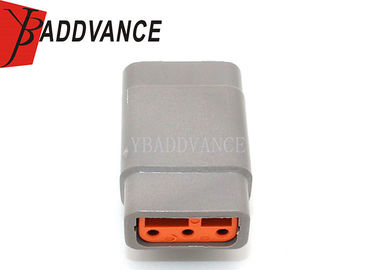

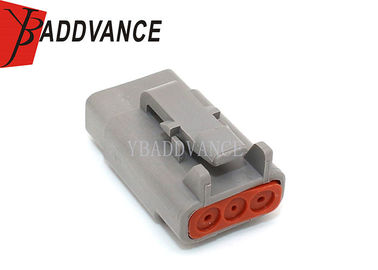

3 Pin Deutsch DTM Series Rectangular Housing Connector DTM06-3S
Description
3 Pin Deutsch DTM Series Rectangular Housing Connector
1 row , 3 way
Plug Housing: DTM06-3S
Wedgelock: WM-3S

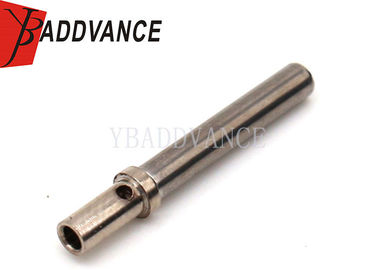

Terminals: 0462-201-20141
DEUTSCH DTM housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 20 DEUTSCH contacts
DTM housings feature an integrated latch for mating.
The connectors have a maximum current capacity of 7.5 Amps and a temperature range of -55°C -125°C.
Series : DTM Series
Configuration : 3 Way Housing + 1 Wedgelock＋3 terminal+3 Wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
3 Pin Deutsch DTM Series Rectangular Housing Connector DTM06-3S |
| P/N | DTM06-3S |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automtoive Motorcycles |
Product Picture Details
