Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | 1J0973724 1J0 973 724 | Feature: | Waterproof |
|---|---|---|---|
| Way: | 4 Pin | Martial: | PBT/PA66 |
| Color: | Black | Type: | Sealed Connector |
| HS Code: | 8536909000 | Gender: | Female |
| High Light: | car headlight connector,headlight plug connector |
||

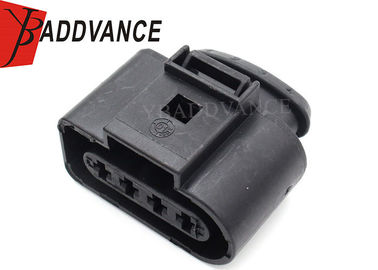

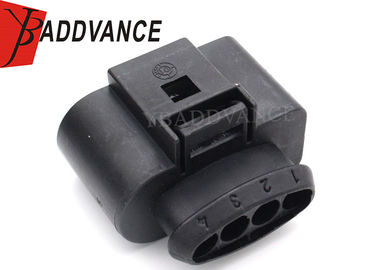

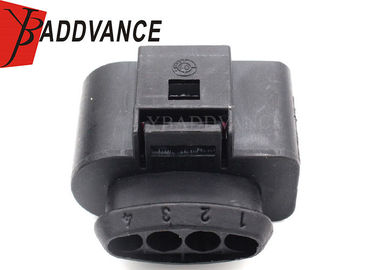

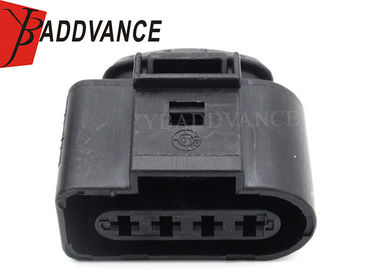

1J0973724 1J0 973 724 4 Way Ignition Coil Connector for AUDI VW
Description
4 Way Ignition Coil Connector for AUDI VW
Used for Ignition Coils by A udi and V W
Package Dimensions: 6.4 x 5.8 x 2 cm
1 Row ,4 Way
Mating connector : 1J0 973 824
Contents include:
1 x Male Connector
4 x Wire Terminals
4 x Wire Seals
1 x Waterproof Seal
1 x Terminal Lock
We can make the wire harness if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
1J0973724 1J0 973 724 4 Way Ignition Coil Connector for AUDI VW |
| P/N | 1J0973724 1J0 973 724 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
