Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Number Of Position: | 4 Way | Number Of Row: | 1 Row |
|---|---|---|---|
| Number Of Contact: | 4 | Color: | Black |
| Sealed/Unsealed: | Sealed | Male/Female: | F |
| Material: | PBT | Application: | For Japanese Cars |
| Leak Current: | 10μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo electric connectors,sealed sensor connector |
||

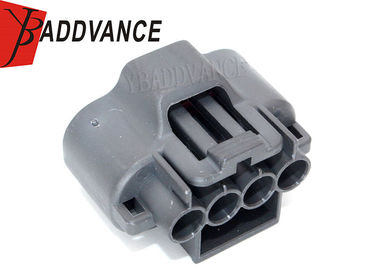

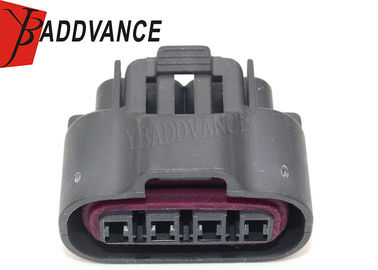

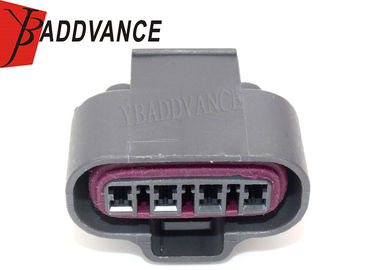

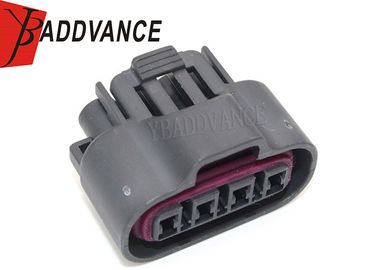

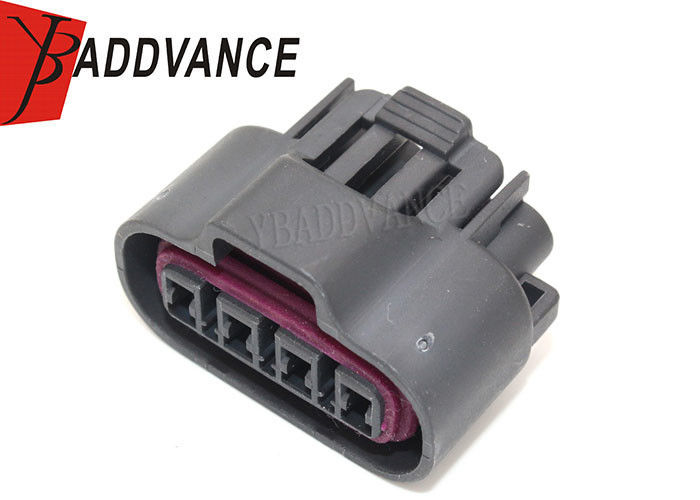

Sumitomo 4 Pin Female Japanese Electrical Connectors Black Supplied With Kits
Product Description
YBADDVANCE Supplied With this kinds of 4 Pin female sumitomo connectors and application for japanese cars.The following will show the all kits together for you.
1 X Connector Housing
4 X Wire seals
4 X crimp terminals
1 X Inner Seal
1 X black lock
Specification
| Keywords | Japanese Electrical Connectors |
| Original Number | BC7046D-2.2-21 |
| Series | Sumitomo Series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 1 Row |
| Contact resistance |
Initial 3mΩ Max. after durability tests 10mΩ Max |
| Leak current | 10μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial 98kPa Min. after durability tests 98kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
