Product Details:
Payment & Shipping Terms:
|
| Housing Part Number: | 6189-0775 | Locking Part Number: | 6918-1594 |
|---|---|---|---|
| Material: | PBT | Color: | Green |
| Sealed/Unsealed: | Sealed | Male/Female: | F |
| Way: | 2 Way | Application: | Fit For Nissan |
| Leak Current: | 10μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo electric connectors,sealed sensor connector |
||

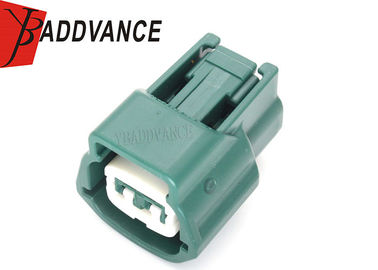

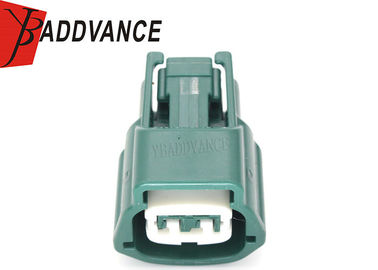

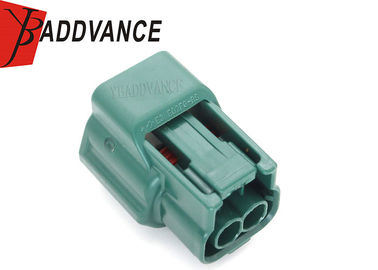

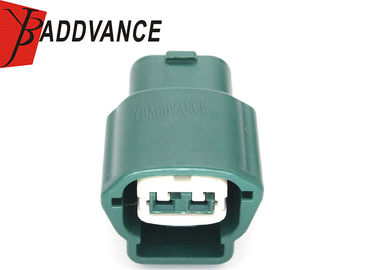

Sumitomo 6189-0775 RS 090 Series Green 2 Pin Female Connector For Nissan 6918-1594
Product Description
It's green color YBADDVANCE 2 Pin female connector fit for nissan cars and provided with kits together as the following:
1 x female connector housing
2 x female terminals
1 x white lock
2 x wire seal
Terminal
2.3mm 8240-0263
2.3mm 8240-0266
2.3mm 8240-0264
2.3mm 8240-0267
wire seal
2.3mm 7165-0474
2.3mm 7165-0473
2.3mm 7165-0472
2.3mm 7165-0471
Connector accessories
TPA 6918-1594
Specification
| Keywords | Sumitomo 2 pin female connector for nissan |
| Original Number | 6189-0775 6918-1594 |
| Series | 2.3mm(090) RS 090 Series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 1 |
| Contact resistance |
Initial 3mΩ Max. after durability tests 10mΩ Max |
| Leak current | 10μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial 98kPa Min. after durability tests 98kPa Min. |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Green |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
More details about pictures
