2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963

2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963
2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963

Large Image :  2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 240PC024S8014 10811963

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
P/N: 240PC024S8014 10811963 Way: 2 Pin
Martial: PBT/PA66 Feature: Waterproof
Type: Sealed Connector Color: Grey
HS Code: 8536909000 WARRANTY: 1 Year
Gender: Female PLACE OF ORIGIN: Shaanxi,China
High Light:

fuel injector plug

,

diesel injector connector

2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963







Description



2 Pin FCI Sealed 1.5 mm Fuel Diesel Injector Connector

These Connector belong to FCI and D elphi

1 Row ,2 Way

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Including : 1 housing +2 terminals +2 seals

Application : D elphi Fuel Diesel Injector Fuel Rail Plug

Housing: PBT+GF,PA66+GF;
Terminal: Copper Alloy/Brass/Phosphor Bronze.
Seal:  Silicon Rubber

Lock : PA66

We can make the wire if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

High quality with reasonable price ,If you need more, please contact with us to get cheaper price.









Specification



Item name

2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963
P/N 240PC024S8014 10811963

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin Sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles

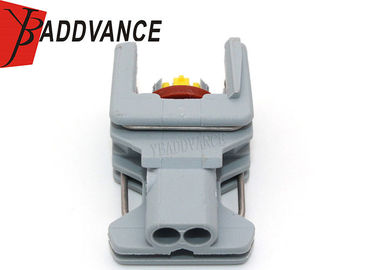

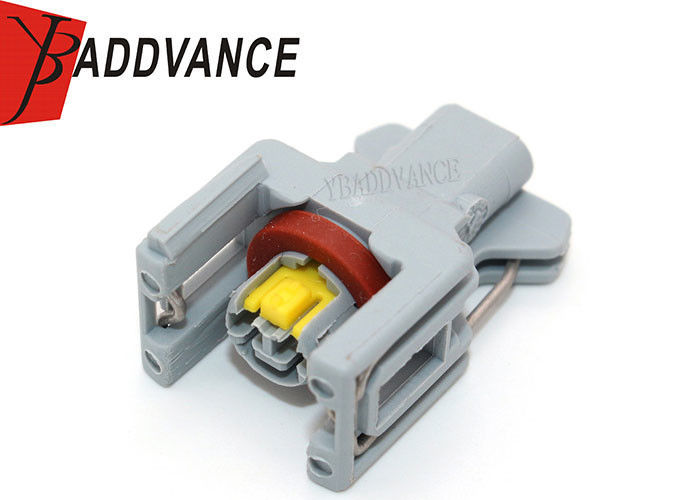

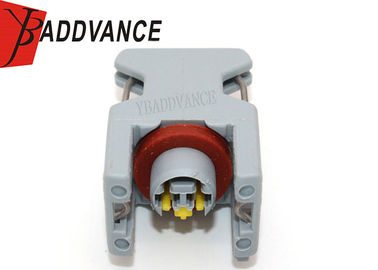

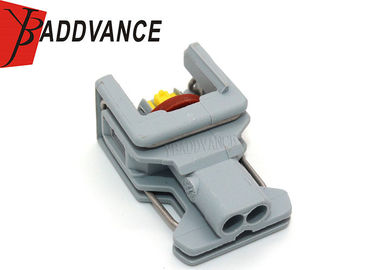

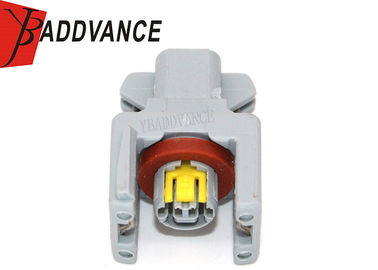

Product Picture Details



2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 0

2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 1

2 Pin FCI Sealed Fuel Diesel Injector Connector 240PC024S8014 10811963 2
