Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | BC7081E-1.5-21 | Way: | 8 Pin |
|---|---|---|---|
| Martial: | PBT/PA66 | Feature: | Waterproof |
| Color: | Black | Type: | Delphi GT 150 Connectors |
| HS Code: | 8536909000 | WARRANTY: | 1 Year |
| Gender: | Female | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | metri pack connector,weather pack electrical connectors |
||
GT 150 Series 8 Pin 8 Way Female Connector Electronic Throttle Body 15326835 For GM
Description
8 Pin Female GT 150 Series Waterproof Housing Connector for GM
2 Row ,8 Way
Series :GT 150
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Including : 1 housing +8 terminals +8 seals+1 Lock
Lock :PA66
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality with reasonable price ,If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
8 Pin Female GT 150 Series Waterproof Housing Connector for GM |
| P/N | BC7081E-1.5-21 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

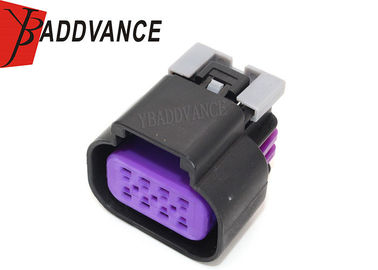

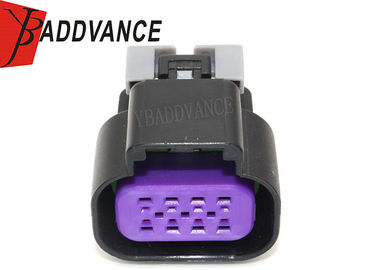

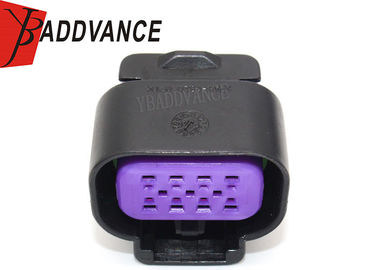

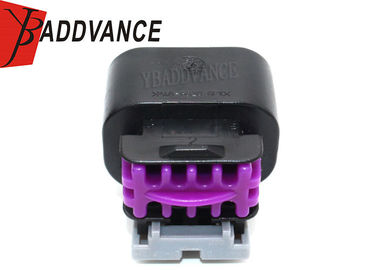

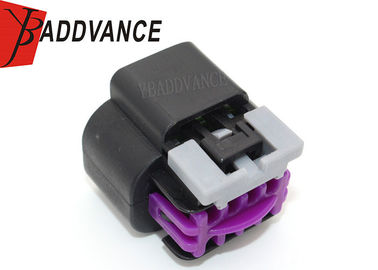

Product Picture Details
