Product Details:
Payment & Shipping Terms:
|
| P/N: | 15397257 15397149 | Way: | 3 Hole |
|---|---|---|---|
| Martial: | PBT/PA66 | Color: | Grey |
| Feature: | Waterproof | HS Code: | 8536909000 |
| Type: | Sealed Connector | WARRANTY: | 1 Year |
| Gender: | Female | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | coil pack connector,metri pack connector |
||
3 Pin LS TPS AEM MAP GT150 Series Connector Fit For GM 15397257 15397149
Description
3 Pin LS TPS AEM MAP GT150 Series Connector Fit For GM
These Connector brand belong to D elphi
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Lock :PA66
It's fit for the following application: G M Car
Including : 1 housing +3 terminals +3 seals+1 Lock
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
If you need more, please contact with us to get cheaper price.
Specification
|
Item name |
3 Pin LS TPS AEM MAP GT150 Series Connector Fit For GM 15397257 15397149 |
| P/N | 15397257 15397149 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

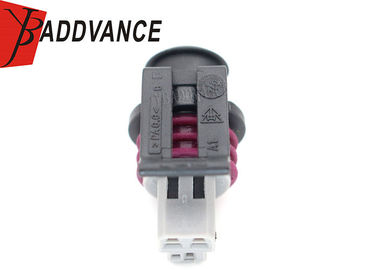

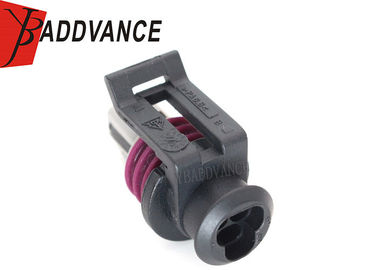

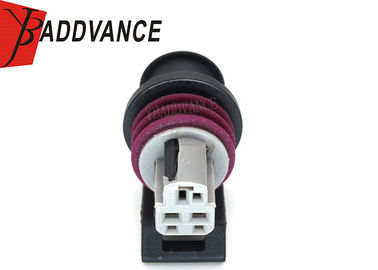

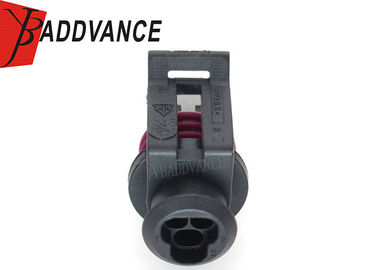

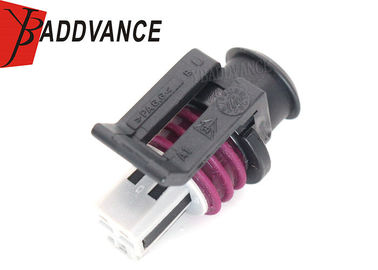

Product Picture Details
