Product Details:
Payment & Shipping Terms:
|
| Number Of Contacts: | 3 | Part Number: | 174357-2 |
|---|---|---|---|
| Series: | AMP Econoseal J Mark II (+) Series | Number Of Position: | 3 Pin |
| Number Of Rows: | 1 Row | Pitch: | 4.8mm |
| Gender: | Male | Body Orientation: | Straight |
| Housing Material: | PBT | For Use With: | Fit For Suzuki |
| High Light: | te connectivity automotive connectors,amp junior power timer connector |
||

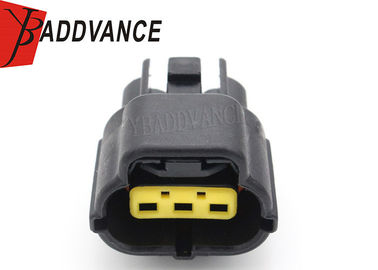

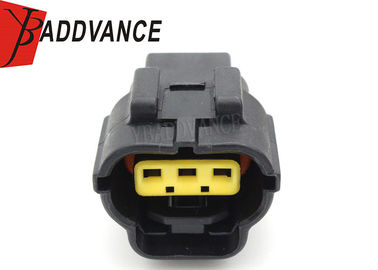

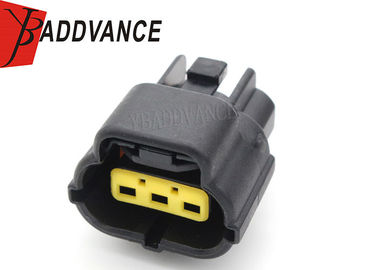

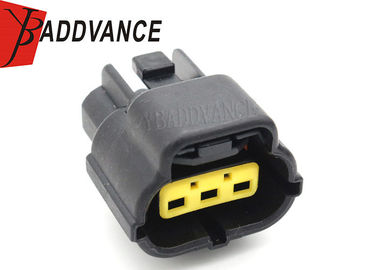

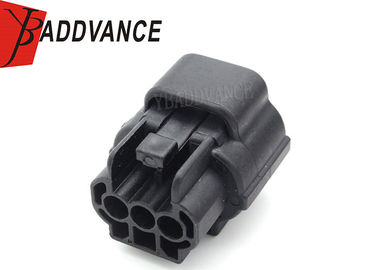

AMP 070 Econoseal 3 Way Intake Air Pressure Sensor IAP Connector For Suzuki 174357-2
Product Description
This kinds of connector housing have already replaced by YBADDVANCE. A range of Econoseal J Mark II (+) series waterproof receptacle and plug style automotive wire connector housings. The wire seals for these automotive connector housings can be loaded at the same time as the contacts are crimped and cavity plugs can be used to plug up unused cavities. The design of these receptacle and plug style wire connector housings allows mis-mating to be prevented thus avoiding contact damage. These Econoseal J Mark II (+) series automotive housings also have a plate inserted to detect the half-mating of contacts and a double lock feature.
Specification
| Length | 25.4mm |
| Width | 22.8mm |
| Depth | 27.6mm |
| Male/Female | female |
| Material | PBT |
| Connector Style | Housing for female terminals |
| Mounting Type | Cable Mount |
| Number of Row | 1 Row |
| Centerline (Pitch) | 4.8 mm |
| Number of Positions | 3 Pin |
| Connector Style | Housing for female terminals |
| Included | Connector Housing+Terminals+Wire seals |
| Color | Black |
| Operating Temperature range | -40℃~125℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
