Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Keywords: | Vehicle Speed Sensor Connector |
|---|---|---|---|
| Application: | For Toyota 1JZ-GTE, 2JZ-GTE, R152, V160, W58 | Part Number: | 6248-5316 6248-5317 |
| Sealed/Unsealed: | Sealed | Male/Female: | Female |
| Number Of Row: | 1 Row | Number Of Position: | 3 Pin |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo electric connectors,sealed sensor connector |
||

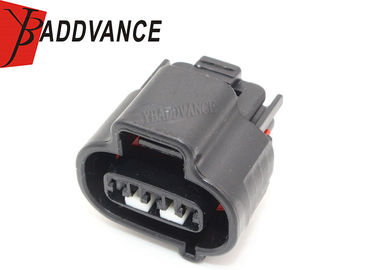

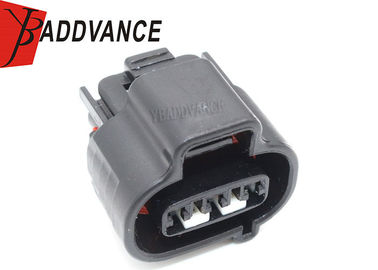

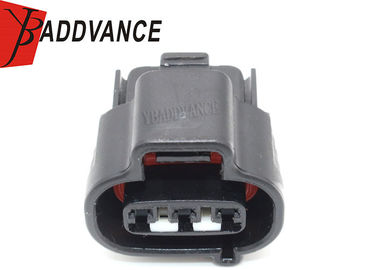

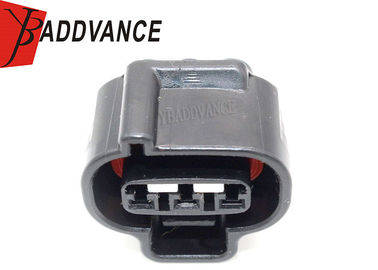

6248-5316 6248-5317 3 Way Vehicle Speed Sensor VSS Sumitomo Connector For Toyota
Product Description
YBADDVANCE Vehicle Speed Sensor VSS connector plug FITS For Toyota Lexus 1JZ-GTE, 2JZ-GTE, R152, V160, W58 and the following will show you all the kits.
1 x connector housing
1 x inner seal
3 x Female terminals
3 x wire seals
Specification
| Keywords | 3 Pin female sumitomo connector |
| Original Number | 6248-5316 6248-5317 |
| Series | Sumitomo TS Sealed Series |
| Male/Female | female |
| Material | PBT |
| Number of Rows | 1 |
| Number of Pin |
3 Pin |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Included |
female housing+inner seal+wire seal+terminals |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Gray |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
