Product Details:
Payment & Shipping Terms:
|
| P/N: | 174257-2 | Feature: | Waterproof |
|---|---|---|---|
| Martial: | PBT/PA66 | Color: | Black |
| Way: | 4 Hole | HS Code: | 8536909000 |
| Type: | Sealed Connector | WARRANTY: | 1 Year |
| Gender: | Female | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | te connectivity automotive connectors,amp junior power timer connector |
||
4 Way TE Connectivity Econoseal J Series Receptacle Connector 174257-2
Description
4 Way TE Connectivity Econoseal J Series Receptacle Connector 174257-2
Length: 27.6mm
Width: 20.6mm
Height: 29.3mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
For Use With: Econoseal Mark II+ Contacts, Double Lock Plates
2-row black ECONOSEAL J MK Housing made of PBT for female terminals
Including : 1 housing +4 terminals +4 seals
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
4 Way TE Connectivity Econoseal J Series Receptacle Connector 174257-2 |
| P/N | 174257-2 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
4 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 4 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

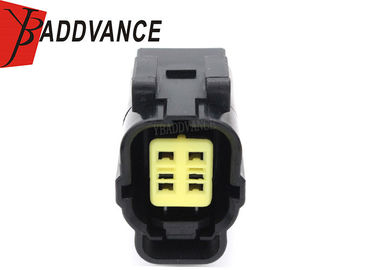

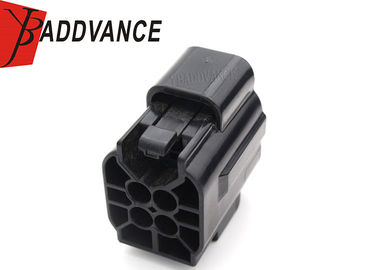

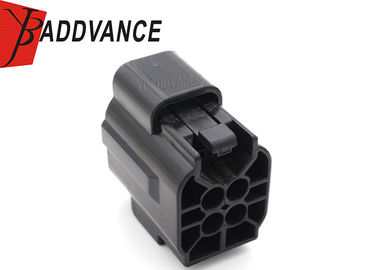

Product Picture Details
