14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals

14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals

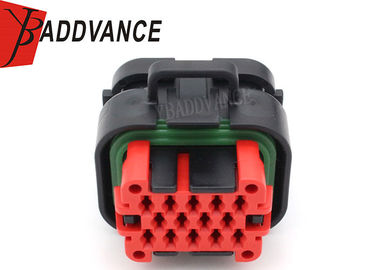

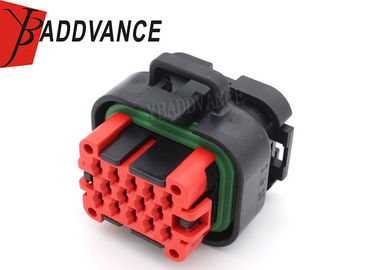

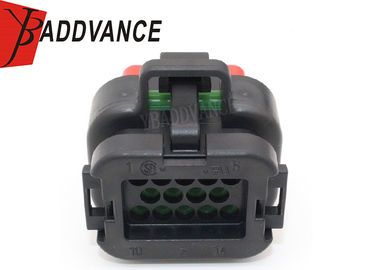

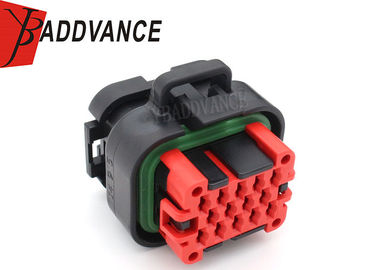

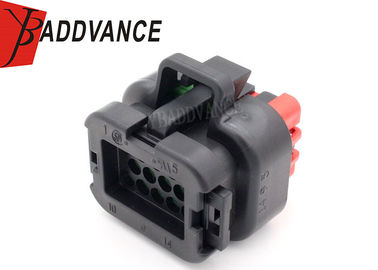

14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals

Large Image :  14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 776273-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Material: PA66 Current Rated: Below 15 Amp
Connector Style: Housing For Female Terminals WARRANTY: 1 Year
Mating Pin Diameter: 1.3 Mm HS Code: 8536909000
Connector System: Wire-to-Board, Wire-to-Device Number Of Positions: 14 Pin
Gender: Female PLACE OF ORIGIN: Shaanxi,China
High Light:

tyco superseal connectors

,

tyco circular connectors

14 Pin 14 Way Female Tyco Superseal Connectors With Terminals , 3 Row 776273-1





Description



This connector is a TYCO/AMP Sealed Sensor Connector, typically used on CNG injectors,

OEM coils, and other various sensors under the hood on foreign and domestic production vehicles.

This TE Connectivity AMP range of Sealed Sensor Connector for Spark Coil, with Sensor flat type Timer crimp Contact are suitable for extreme environments as found in many automotive applications.

Height : 34.9 mm

Width : 22.6 mm

Length: 22.7 mm

Cable Exit Angle: 180°

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -140°C.

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance









Specification



Item name

TE Connectivity Tyco Ampseal 14P Plug Assembly 776273-1
P/N 776273-1

Wire Size

18-20AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

Tyco Superseal Connectors

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  14 Pin 14 Way
Color  Black+Red
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details



14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 0

14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 1

14 Way Female Tyco AMP Connectors 3 Row 776273-1 Tyco Superseal Connectors With Terminals 2
