Product Details:
Payment & Shipping Terms:
|
| Application: | Fit For AUDI /VW /SEAT/SKODA | Part Number: | 8K0973724 |
|---|---|---|---|
| Keywords: | Ignition Coil Connector | Way: | 4 Way |
| Sealed/Unsealed: | Sealed | Number Of Row: | 1 Row |
| Warranty: | Yes | Remark: | Not OEM-branded |
| High Light: | car headlight connector,headlight plug connector |
||

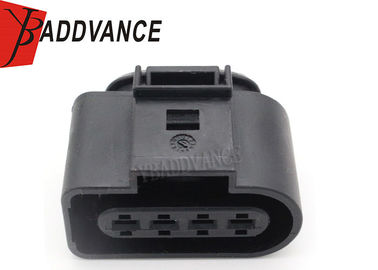

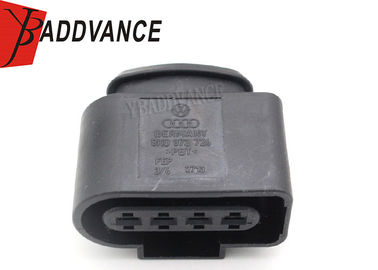

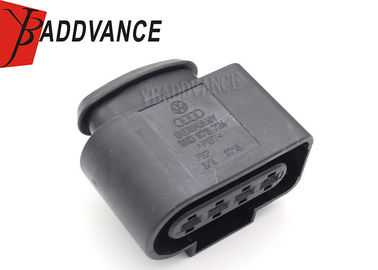

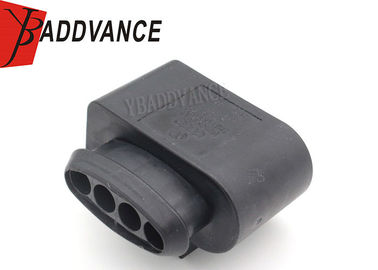

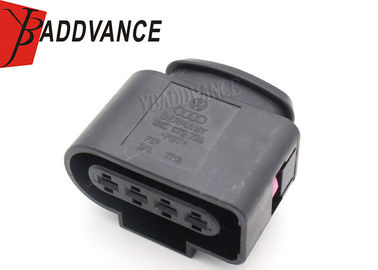

4 Pin 4 Way Ignition Coil Connector Fit For VW Golf Audi 8K0973724
Description
Ignition Coil Connector Housing Plug For VW Golf Audi Q5 Q7 and the materials is PBT in very high quality.this connector come with the following kits.
1 x female connector housing
1 x connector seal
4 x wire seals
4 x female terminals
Specification
| Product Name | 4 PIN 8K0973724 Ignition Coil Connector Contact Plug |
| OE NO. | 8K0973724 |
| Type | Waterproof Sealed connector |
| Male/Female | female |
| Sealed/Unsealed | sealed |
| Material | PBT |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Contact resistance | Initial 5mΩ Max. after durability tests 8mΩ Max. |
| Leak current | 10μA Max. |
| Insulation resistance | 100MΩ Min. |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
