Product Details:
Payment & Shipping Terms:
|
| Product Range: | Super Seal Series | Gender: | Male |
|---|---|---|---|
| No. Of Positions: | 34 Ways | Part Number: | 4-1437290-1 |
| Type: | Sealed Connector | HS Code: | 8536909000 |
| Number Of Row: | 4 Row | Keywords: | Amp Superseal 1.0 |
| Connector Type: | Plug | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | ecu connector plug,female receptacle connector |
||
4 Row 34 Way 34 Pin Amp Superseal 1.0 Plug Connector For ECU 4-1437290-1
Description
Superseal 1.0 plug housings accept 1.0 mm receptacle contacts, carrying up to 15 amps. They are available in 26 and 34.This connector come with crimp terminals and connector housing together for you.
It's in stock and we can post you as soon as possible.
Specification
|
Item name |
SUPER SEAL Series, 4 Row 34 Way Plug Connector |
| P/N | 4-1437290-1 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
Amp Superseal 1.0 connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 34 Pin 34 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

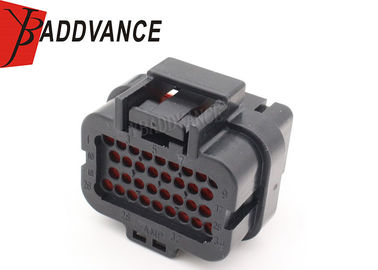

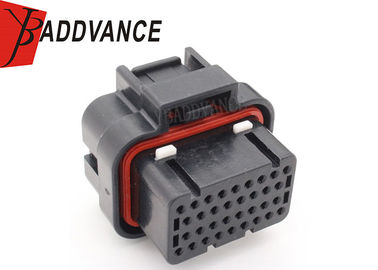

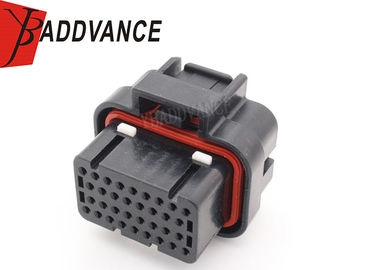

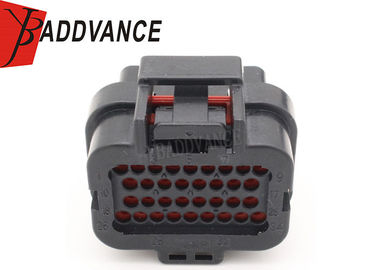

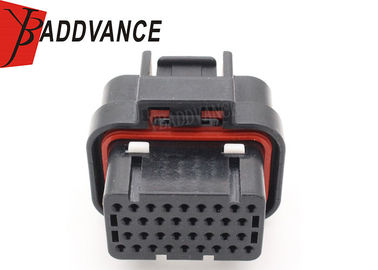

Product Picture Details
