Product Details:
Payment & Shipping Terms:
|
| Number Of Contacts: | 26 | Number Of Contact Rows: | 4 Rows |
|---|---|---|---|
| Body Orientation: | Straight | Housing Material: | Polyester |
| Type: | Sealed Connector | Number Of Positions: | 26 Pin |
| Part Number: | 3-1437290-8 2-1437285-2 | Feature: | Waterproof |
| Gender: | Female | ||
| High Light: | jae electronics connectors,female receptacle connector |
||

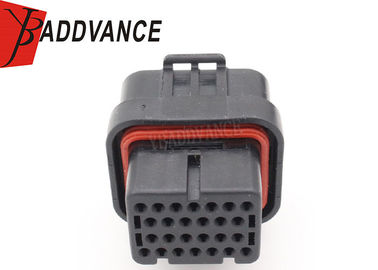

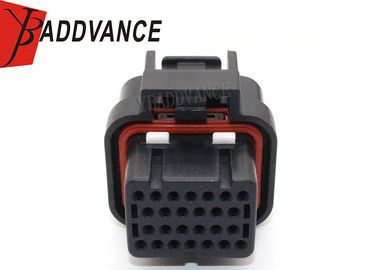

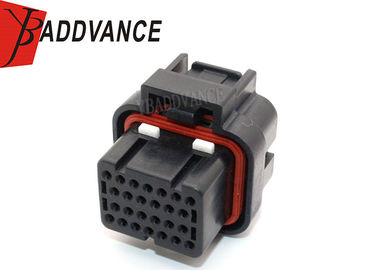

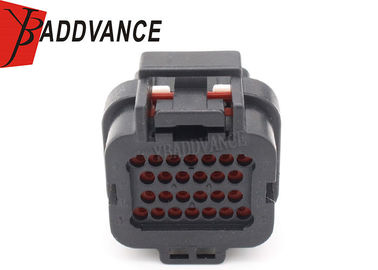

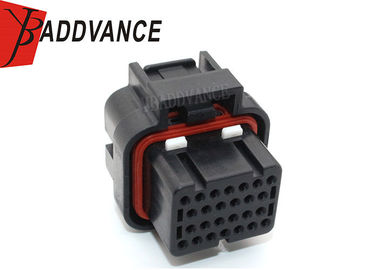

26 Way 26 Pin Super Seal Automotive Connector 1.0 mm System 3-1437290-8 3-1437290-7
Description
AMP Superseal Connectors 1.0 mm system 26 Pin female with terminals.
the following will inform you this connector will use for.....
Ducati 749, 848, 999, 1098, 1098R, 1198, Desmosedici dash (harness side)
GSXR1300 Hayabusa ECU (99'-07')
YZF-R1 ECU (07'-08')
YZF-R6 ECU (06'-14')
ZX-10R ECU (04'-05')
Motec ECU's: M84, M400, M600, M800, and M1 series M130, M142, M150
Motec Power Distribution Module's: PDM15, PDM30
Motec Expansion box E888
DTAfast ECU's: S60, S80, S100
Haltech ECU's
Link ECU's
Specification
|
Item name |
AMP SUPERSEAL,3mm Pitch, 26 Way, 4 Row Male Connector Housing |
| P/N | 3-1437290-7 3-1437290-8 2-1437285-2 |
|
Wire Size |
18-20AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
sure seal connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 26 ways |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
