Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | 776428-1 | Way: | 2 Hole |
| Gender: | Male | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | Type: | Sealed Connector |
| PLACE OF ORIGIN: | Shaanxi,China | ||
| High Light: | tyco automotive connectors,tyco circular connectors |
||
2 Way Male TE Connectivity Ampseal 16 Connector with Terminals 776428-1
Description
2 Way Male TE Connectivity Ampseal 16 Connector with Terminals 776428-1
These AMPSEAL automotive receptacle style connectors have a standard diameter wire seal and accept a wire size range of 2.18 to 3.67 mm.
It is accept up to 2 pins or sockets to make a solid connection between wires which may need to be occasionally disconnected
These Plugs and Caps use an easily identified, color coded keying system to ensure that connectors are not mis-mated in applications where multiple connector assemblies are used.
Height: 18.93mm
Width: 19.6mm
Depth: 47.55mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Way Male TE Connectivity Ampseal 16 Connector with Terminals 776428-1 |
| P/N | 776428-1 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole |
2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

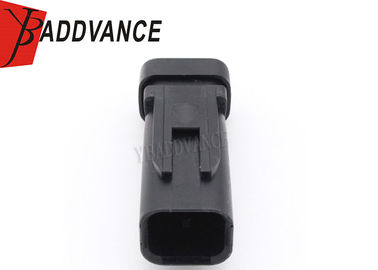

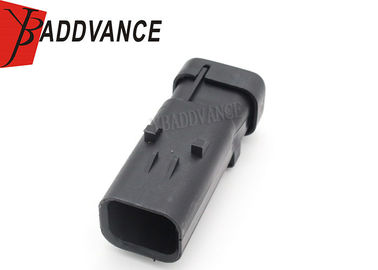

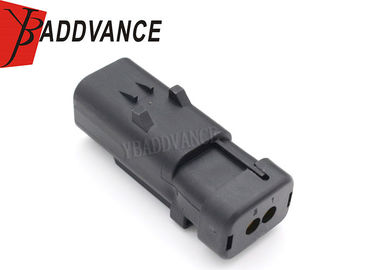

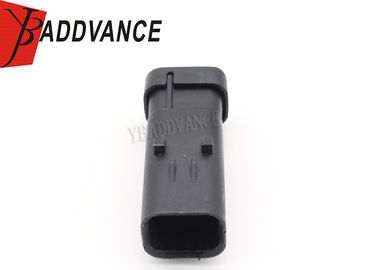

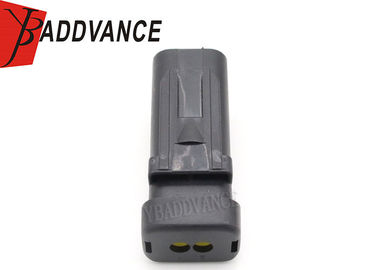

Product Picture Details
