Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | 770680-2 | Way: | 23 Hole |
| Gender: | Female | HS Code: | 8536909000 |
| Type: | Sealed ConnectorTE Connectivity Automotive Connectors | WARRANTY: | 1 Year |
| PLACE OF ORIGIN: | Shaanxi,China | ||
| High Light: | tyco automotive connectors,tyco circular connectors |
||
23 Position TE Connectivity Rectangular Housing Connector 770680-2
Description
23 Position TE Connectivity Rectangular Housing Connector 770680-2
it is H11 bulb F side (vehicle side) connector .
It is a set of retainers and pin 2 wire seal 2. part No. 82824-60460, the other side of this product is not available. Valve body and together formed what it seems.
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
23 Position TE Connectivity Rectangular Housing Connector 770680-2 |
| P/N | 770680-2 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
23 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole |
23 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

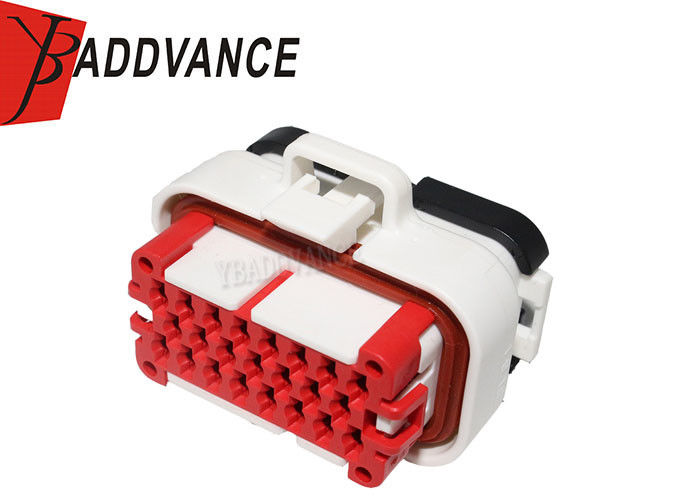

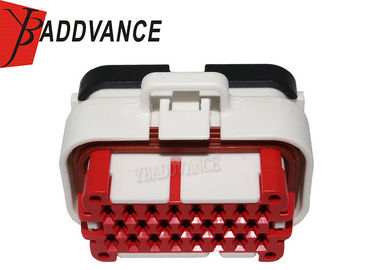

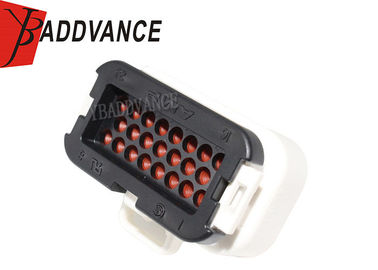

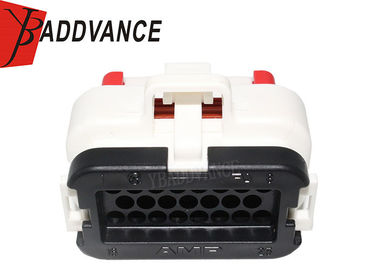

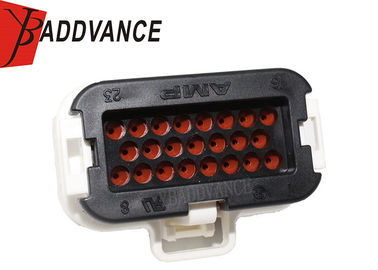

Product Picture Details
