Home ProductsTyco AMP Connectors

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

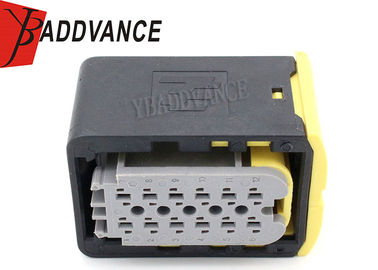

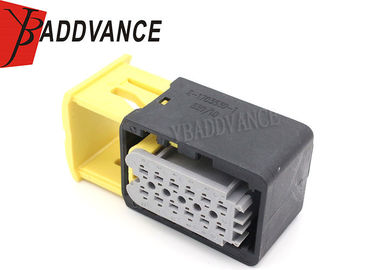

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1
Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1

Large Image :  Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 2-1703639-1

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black P/N: 2-1703639-1
Martial: PBT/PA66 Feature: Waterproof
Type: TE Connectivity AMP Connectors HS Code: 8536909000
Way: 12 Hole Gender: Female
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

tyco superseal connectors

,

tyco circular connectors

12 Way TE Connectivity HDSC Sealed MCP 1.5K Series Receptacle Connector 2-1703639-1





Description



The 1-1703639-1 is a 12-position 2-row black Receptacle Housing used with MCP-series socket contacts. The Heavy Duty sealed connector are clear handling, low mating force with a reliable slide locking mechanism delivered in pre-locked position and integrated secondary locking device.

Height:30.8mm
Width:25.7mm
Depth:54.1mm

They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

A slide lock assists with the mating and unmating process and provides a secure mating connection. The housings feature polarization and keying to prevent mismating and have a low mating force.

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.





Specification



Item name

12 Way TE Connectivity MCP 1.5K Series Receptacle Connector 2-1703639-1
P/N 2-1703639-1

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

12 pin AMP Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  12 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

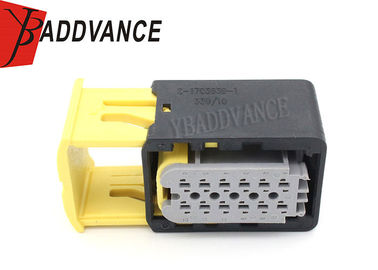

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 0

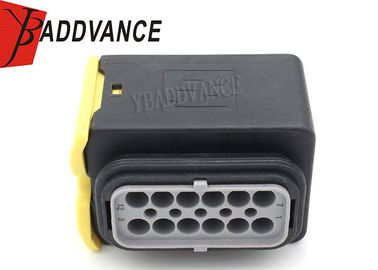

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 1

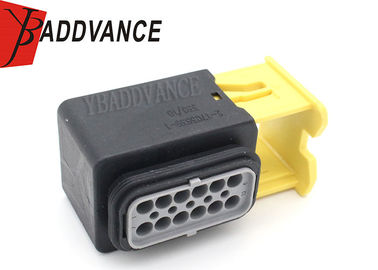

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 2
