Product Details:
Payment & Shipping Terms:
|
| P/N: | BC7067 | Martial: | PBT/PA66 |
|---|---|---|---|
| Name: | Sealed Automotive Connectors | HS Code: | 8536909000 |
| Type: | Sealed Connector | WARRANTY: | 1 Year |
| Way: | 2 Hole | Feature: | Waterproof |
| Gender: | Male | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | diesel injector connector,fuel injector adapter |
||

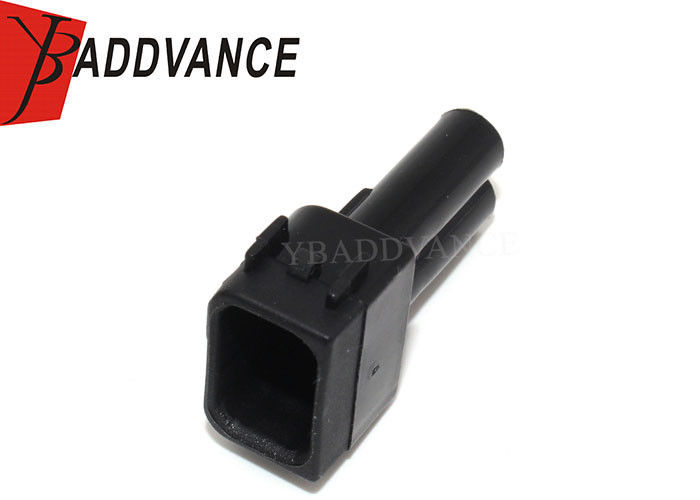

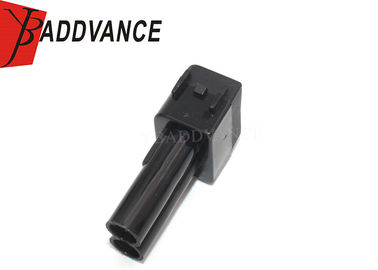

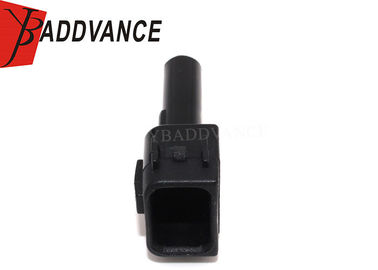

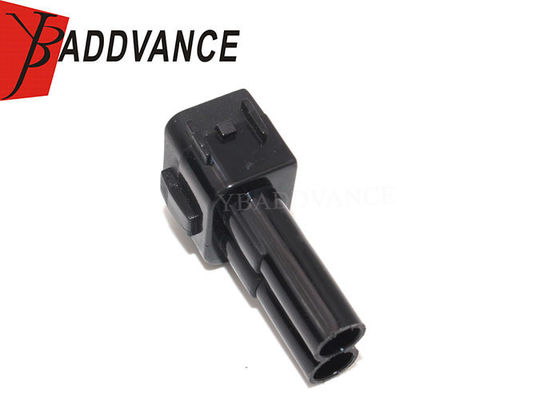

2 Pin Fuel Injector PA66 Electrical Automotive Fuel Injector Male Connector For H onda
Description
2 Pin Fuel Injector PA66 Electrical Automotive Connector For H onda
Housing: PA66Lock: PA66
Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Pin Fuel Injector PA66 Electrical Automotive Connector For H onda |
| P/N | BC7067 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin fuel inector Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
