2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors

2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors
2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors 2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors 2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors 2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors

Large Image :  2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: BC7003DM

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black Martial: PBT/PA66
P/N: BC7003DM HS Code: 8536909000
Way: 2 Hole WARRANTY: 1 Year
Type: Sealed Connector Feature: Waterproof
High Light:

fuel injector plug

,

diesel injector connector

2 Pin Male Fuel Injector Automotive Electrical Sealed Connectors





Description



2 Pin Male Fuel Injector Automotive Electrical Sealed Connectors

The connector has an integral rubber seal to prevent moisture from seeping in and compromising the connection

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

We can make the wire if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance





Specification



Item name

2 Pin Male Fuel Injector Automotive Electrical Sealed Connectors
P/N BC7003DM

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

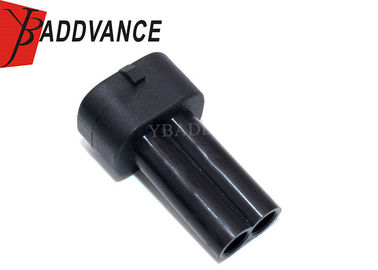

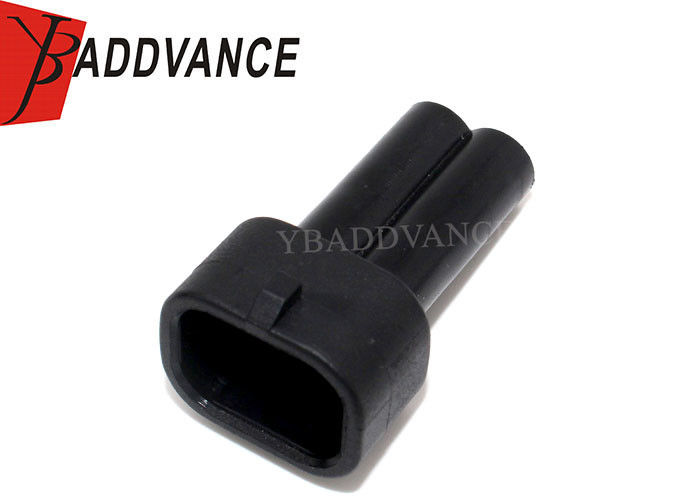

2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors 0

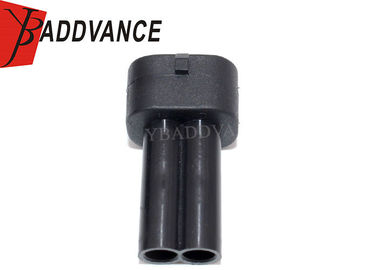

2 Pin Automotive Electrical Connectors , Male Sealed Automotive Connectors 1
