Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | BC7003D | HS Code: | 8536909000 |
| Way: | 2 Hole | WARRANTY: | 1 Year |
| Type: | Sealed Connector | Gender: | Female |
| Feature: | Waterproof | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | fuel injector plug,diesel injector connector |
||
2 Way Denso Fuel Injector Connector Dual Slot Fits High and Low Key Injector Plugs
Description
Waterproof Automotive Fuel Injector Dual Slot Connector
The connector has an integral rubber seal to prevent moisture from seeping in and compromising the connection
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Way Waterproof Automotive Fuel Injector Dual Slot Connector |
| P/N | BC7003D |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

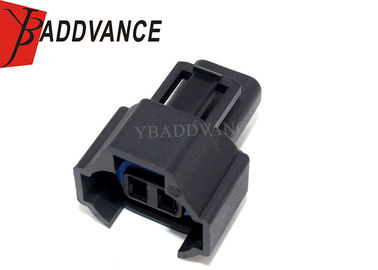

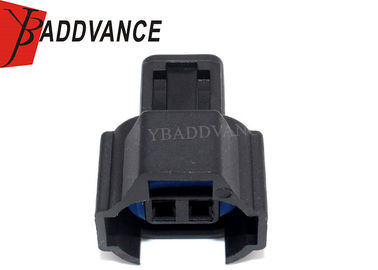

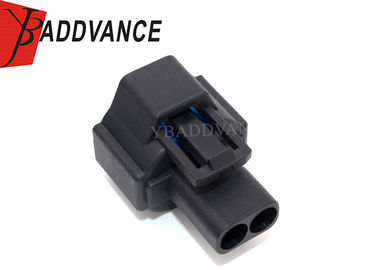

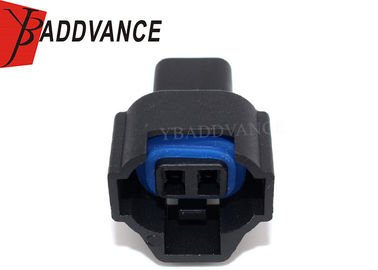

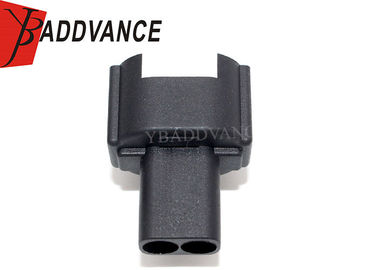

Product Picture Details
