Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | 12146045 | WARRANTY: | 1 Year |
| HS Code: | 8536909000 | Gender: | Female |
| Type: | Sealed Connector | Feature: | Waterproof |
| Way: | 5 Hole | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | coil pack connector,weather pack electrical connectors |
||
5 Position Female Metri-Pack 280 Automotive Connectors 12146045
Description
5 Position Female Metri-Pack 280 Automotive Connectors
Metri-Pack 280 sealed connectors with triple rib silicone rubber seals for environmental protection and a standard ISO 2.8mm configuration.
Metri-Pack 280 sealed connectors have a low energy, low voltage capability, a maximum continuous current of 30 A.
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
5 Position Female Metri-Pack 280 Automotive Connectors 12146045 |
| P/N | 12146045 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
5 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 5 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

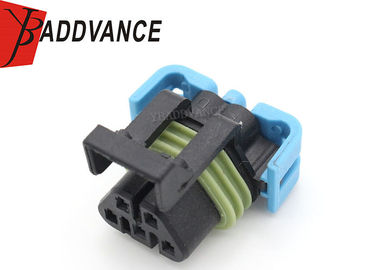

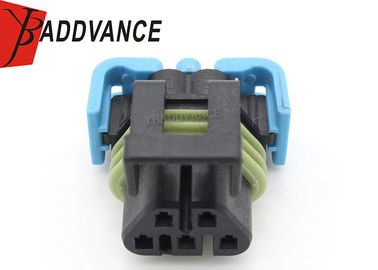

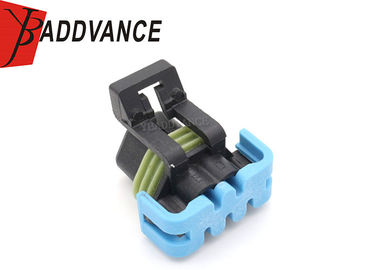

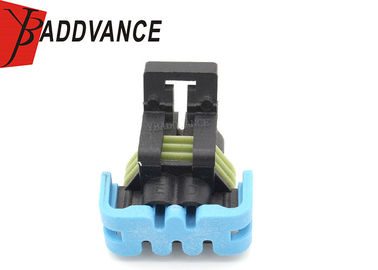

Product Picture Details
