2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027

Certification
China Xi'An YingBao Auto Parts Co.,Ltd certification
I'm Online Chat Now

2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027

2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027
2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027 2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027 2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027 2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027

Large Image :  2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 15300027

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Detailed Product Description
Color: Black Martial: PBT/PA66
P/N: 15300027 WARRANTY: 1 Year
HS Code: 8536909000 Gender: Male
Type: Automotive Weather Pack Connectors Feature: Waterproof
Way: 2 Hole PLACE OF ORIGIN: Shaanxi,China
High Light:

metri pack connector

,

weather pack electrical connectors

2 Hole Female Metri-Pack 280 Sealed Series Connectors 15300027





Description



2 Hole Female Metri-Pack 280 Sealed Series Connectors

Metri-Pack 280 sealed connectors with triple rib silicone rubber seals for environmental protection and a standard ISO 2.8mm configuration.

These Metri-Pack 280 sealed connectors have a low energy, low voltage capability, a maximum continuous current of 30 A.

Height : 25 mm

Width: 25.2 mm

Depth: 29.9 mm

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance









Specification



Item name

2 Hole Female Metri-Pack 280 Sealed Series Connectors 15300027
P/N 15300027

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin sealed Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Black
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

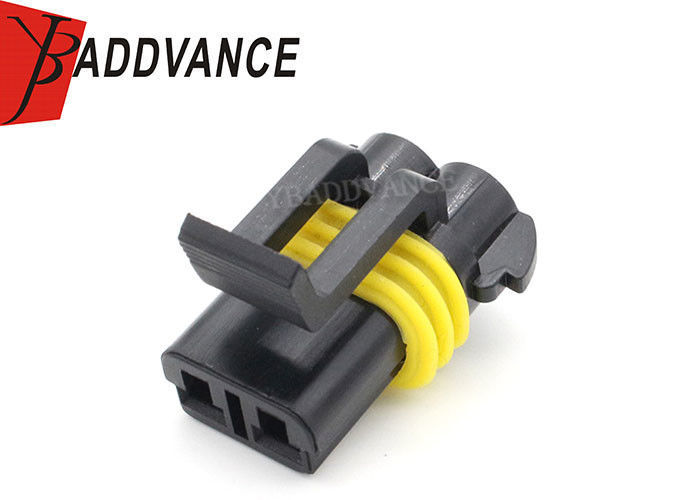

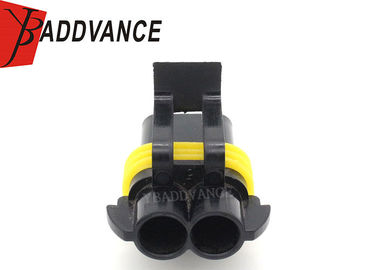

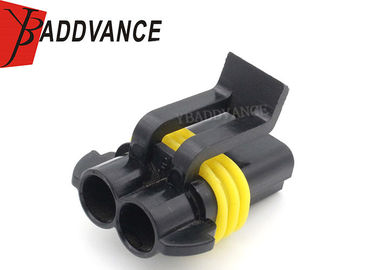

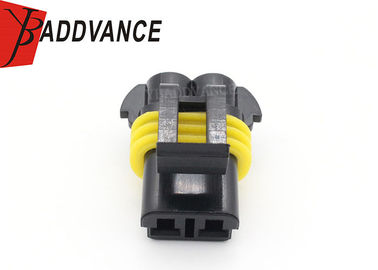

2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027 0

2 Hole Female Weather Pack Electrical Connectors 280 Sealed Series 15300027 1
