Product Details:
Payment & Shipping Terms:
|
| Color: | Grey | Martial: | PBT/PA66 |
|---|---|---|---|
| P/N: | 12162280 | WARRANTY: | 1 Year |
| Gender: | Female | HS Code: | 8536909000 |
| Type: | Sealed Connector | Feature: | Waterproof |
| Way: | 3 Way | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | coil pack connector,weather pack electrical connectors |
||
3 Pin Metri-Pack 150.2 Pull to Seat Connector with Terminals 12162280
Description
3 Pin Metri-Pack 150.2 Pull to Seat Connector with Terminals
Metri-Pack terminals are different from Weather-Pack terminals in that the male terminals have flat pins, similar to a quick disconnect, rather than Weather-Pack's round pins
The Metri-Pack Series 150 Sealed connectors are available with 1 to 10 cavities with contacts to suit two cable sizes (0.35-0.50 and 0.50-1.00mm2) catering for up to 14 Amps.
These Metri-Pack 150.2 Pull-to-Seat automotive device connectors are for use with specific automotive applications.
Height : 17.4 mm
Width : 19.5 mm
Depth:27.1 mm
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
3 Pin Metri-Pack 150.2 Pull to Seat Connector with Terminals 12162280 |
| P/N | 12162280 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

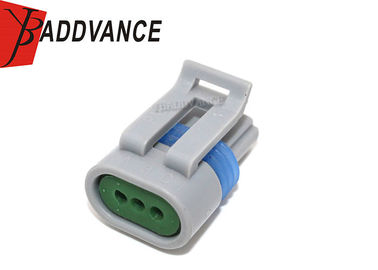

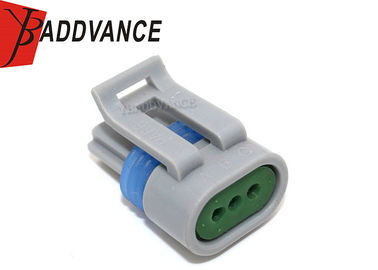

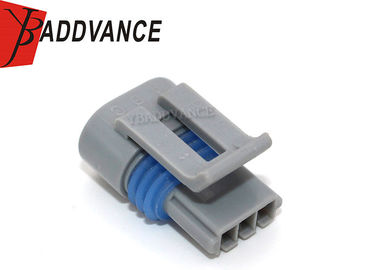

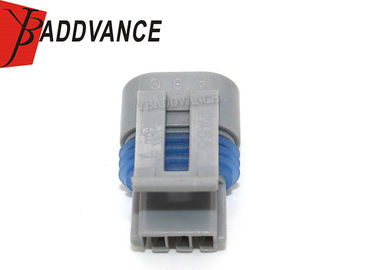

Product Picture Details
