Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Number Of Position: | 2 Pin | Number Of Row: | 1 Row |
|---|---|---|---|
| Warranty: | One Year | Series: | Metri-Pack 6.3 Series |
| Sealed/Unsealed: | Sealed | Termination Method: | Crimp |
| Gender: | Male | Color: | Black |
| Current Rating: | 46A | Part Number: | 12034269 |
| High Light: | coil pack connector,metri pack connector |
||

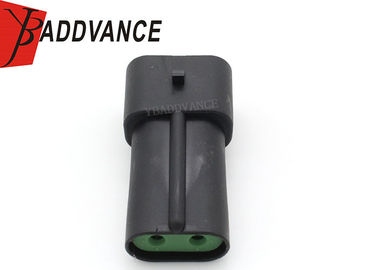

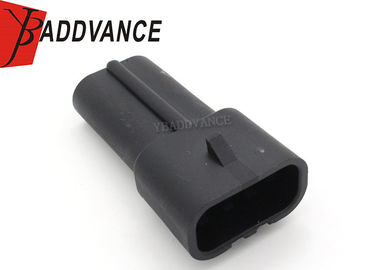

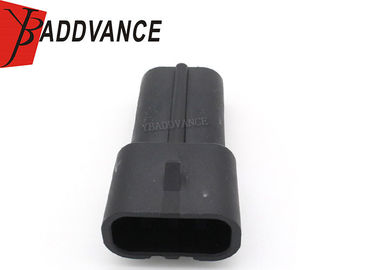

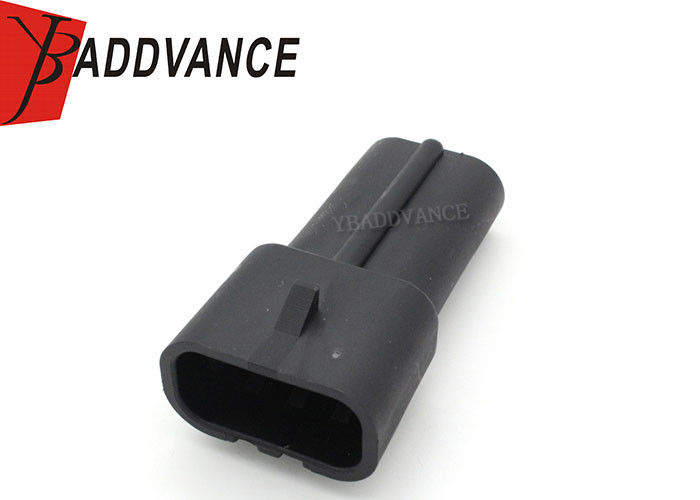

2P Male 630 Series Metri-Pack Automotive Electrical Connectors 12034269
Product Description
YBADDVANCE Connector will replace this kinds of brand plug and material is PA66.
Metri-Pack 630 Sealed Male Automotive Connectors come with waterproof seal and crimp terminals and the size as the following:
56.1LX21.7HX28.5W
Specification
| Keywords | 2P male connector |
| Type | Connector |
| Series | Metri-Pack 630 |
| Male or female | male |
| Material | PA66 |
| Connector Style | Housing for female terminals |
| Max Current Range | 46 Amps |
| Number of Positions | 2 way |
| Product Type | Automotive connectors |
| Number of Rows | 1 Row |
| Connector System | Wire-to-Wire |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Operating Temperature range | -40℃~125℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
