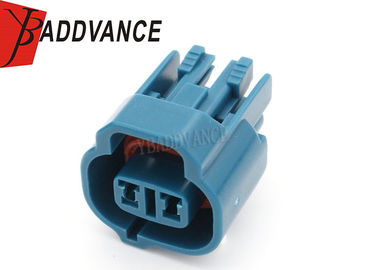

Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031

China Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 supplier
Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 supplier Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 supplier Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 supplier Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 supplier

Large Image :  Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6189-0031

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: Negotiation
Packaging Details: Inside packing :100 units / lot put into Ziplock bags.Outside packing :carton 5 layer
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,PayPal , credit card
Supply Ability: 50,000 units/moth
Contact Now
Detailed Product Description
Gender: Female P/N: 6189-0031
Martial: PBT/PA66 Feature: Waterproof
Type: Sumitomo 2 Pin Connector HS Code: 8536909000
Way: 2 Hole Color: Blue
WARRANTY: 1 Year PLACE OF ORIGIN: Shaanxi,China
High Light:

sumitomo mt connector

,

sumitomo electric connectors

2 Hole Female Blue MT Sealed Series Sumitomo Connectors 6189-0031





Description



Female Blue MT Sealed Series Sumitomo Connectors

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Contact resistance :Initial 3mΩ Max.
after durability 10mΩ Max.
Leak current : 100μA Max.
Insulation resistance: 100MΩ Min.

Height: 21.3mm

Width : 20.1 mm

Length : 23 mm

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

These connectors come with the terminals and seals

We can make the wire if you need it .

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance









Specification



Item name

2 Hole Female Blue MT Sealed Series Sumitomo Connectors 6189-0031
P/N 6189-0031

Wire Size

18-22AWG

Operating Temperature range

-40℃~125℃

Insulation resistance

100M Min.

MOQ

100 units/lot
Key words

2 pin Sumitomo Connector

Design Tooling

Sending us samples or drawing to design it

Delivery Time

About 5-8 work days

Sealed/Unsealed

sealed

Leak current

Initial50kPa Min.after durability tests30kPa Min.
The number of hole  2 way
Color  Blue
Warranty 1 year
Application Automoive Motorcycles









Product Picture Details

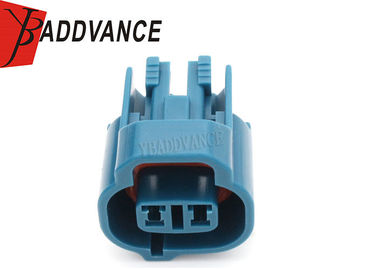

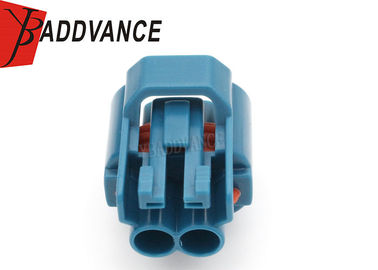

Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 0

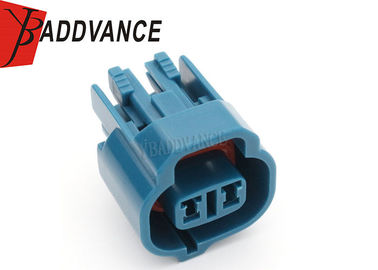

Blue Sumitomo Sealed Connectors 2 Hole Female Sumitomo MT Connector 6189-0031 1
