Product Details:
Payment & Shipping Terms:
|
| P/N: | DT06-2S | Type: | Deutsch Connector |
|---|---|---|---|
| Gender: | Male | Feature: | Waterproof |
| Martial: | PBT/PA66 | Way: | 2 Hole |
| HS Code: | 8536909000 | ||
| High Light: | deutsch dt series connectors,te connectivity deutsch connectors |
||
2 Pin Female Deutsch DT Series TE Connectivity Connector DT06-2S
Description
Deutsch DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts , use size 16 Deutsch contacts, each with 13 amp continuous capacity.
The housings feature an integrated latch for mating.
Height: 15.95 mm
Length: 28.4 mm
Pitch: 5.5 mm
Width:0.591 inch
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.
We can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Pin Female Deutsch DT Series TE Connectivity Connector DT06-2S |
| P/N | DT06-2S |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

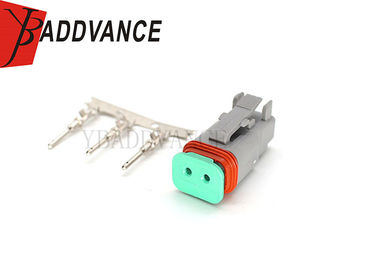

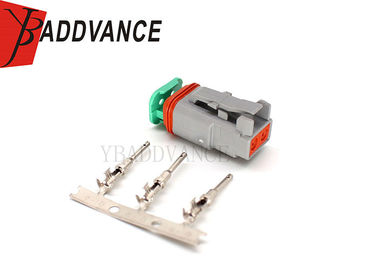

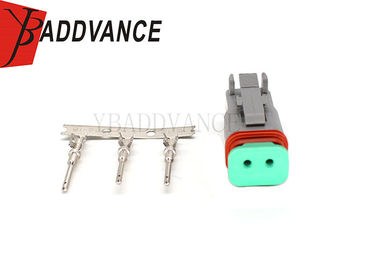

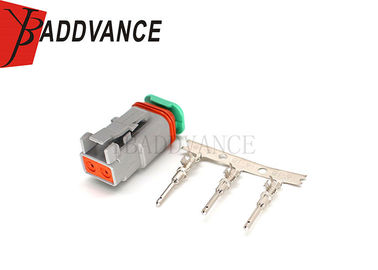

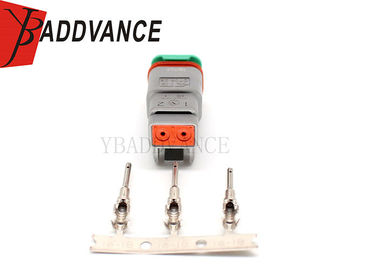

Product Picture Details
